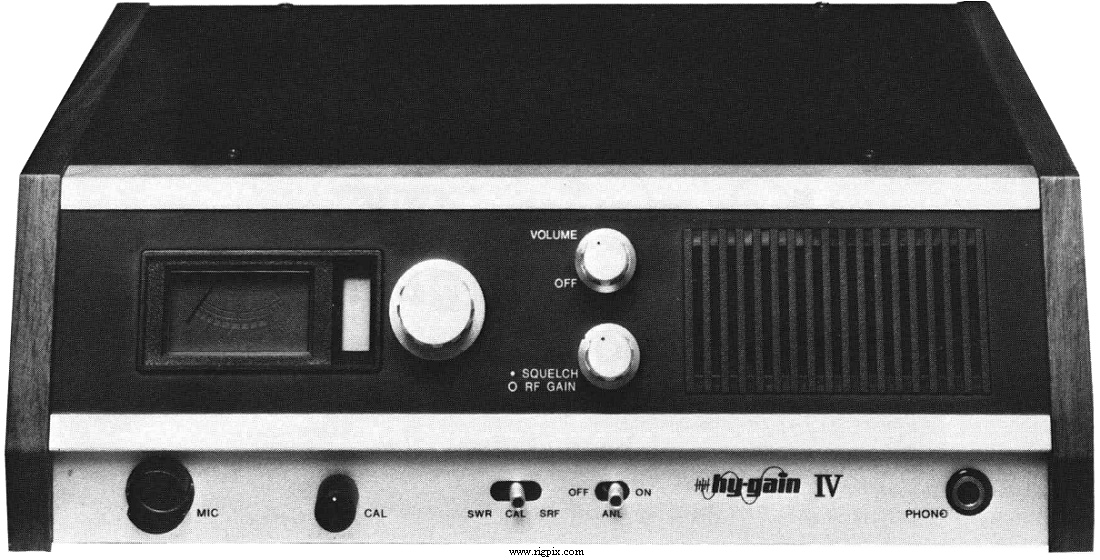

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | Mains: 120 or 230-240 VAC
or 11.5-14.5 VDC |
| Current drain / power consumption: | RX: 300 mA @ 13.8 VDC (No signal)
TX: Less than 1.2 A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 311*103*255 mm (12.24*4.06*10.04") |
| Weight: | ? Kg (? lb) |
| Other features: | ANL. SWR meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S+N/N) |
| Squelch sensitivity: | Less than 1 uV (Threshold)
100 uV (Tight) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max AM modulation (Factory set): | 90 % (Typical) |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin (DIN) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (Assembled in Puerto Rico), 1976-197x (Discontinued) |
| Main PCB: |
PTBM038COX by Cybernet Electronics Corporation
Single sided with through-hole components
|
| Sub PCBs: |
EPO-0612B - AVR/PSU board
PTSR002BOX - SWR board
|
| Additional info: | |
| Related documents: |
Service manual (8.6 MB)
PLL: PLL02A
AF amplifier: TA7205P
RF driver: 2SC1760
RF final: 2SC1306
|
| Known markets and approvals: |
USA
FCC
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
