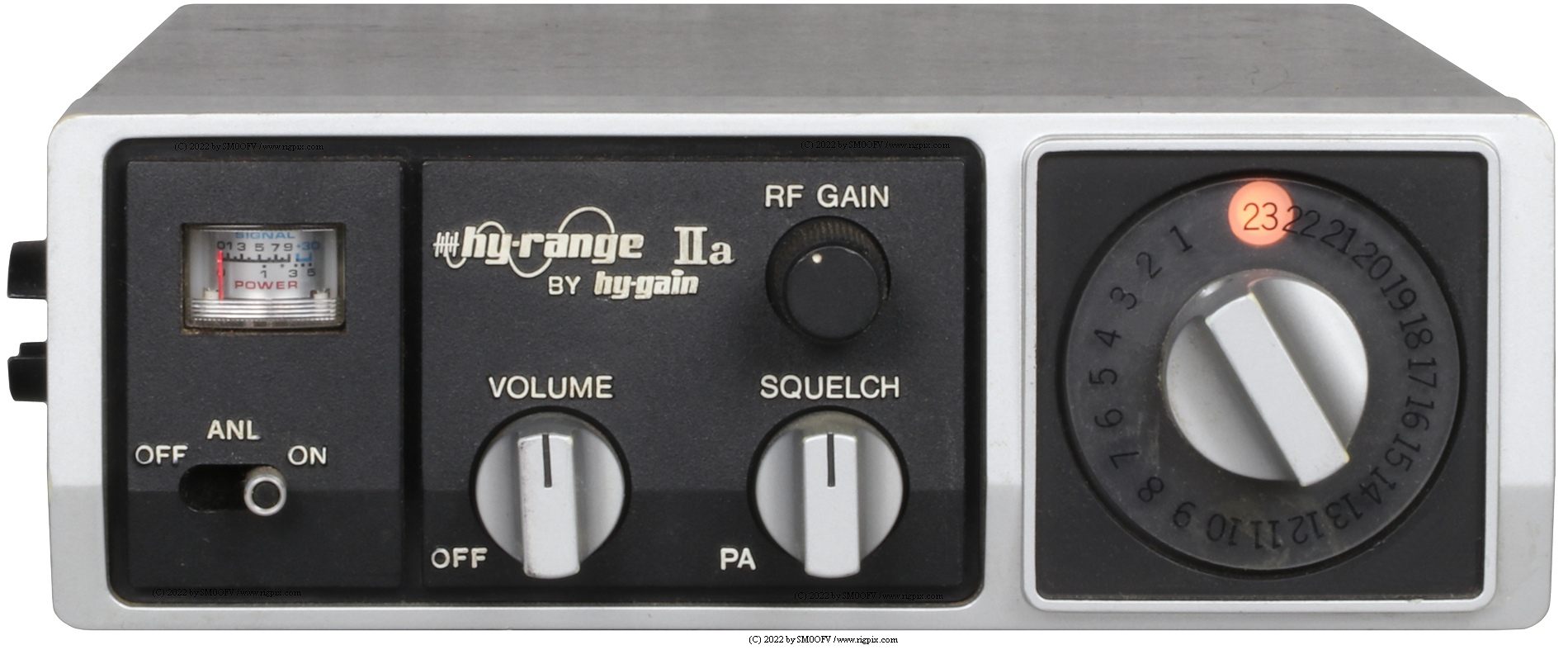

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | PLL (PLL01A) |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 11.5-14.5 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 163*57*209 mm (6.42*2.24*8.23") |
| Weight: | 1.45 Kg (3.2 lb), without mike and mounting bracket |
| Other features: | PA. ANL. RF gain. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 5.965 MHz
2nd IF: 455 KHz - Ceramic filter: Murata CFU455H3
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | TS jack (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 700 ohm / 5-pin DIN (180°) |
| Microphone input level: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (Assembled in Puerto Rico), 1975-197x (Discontinued) |

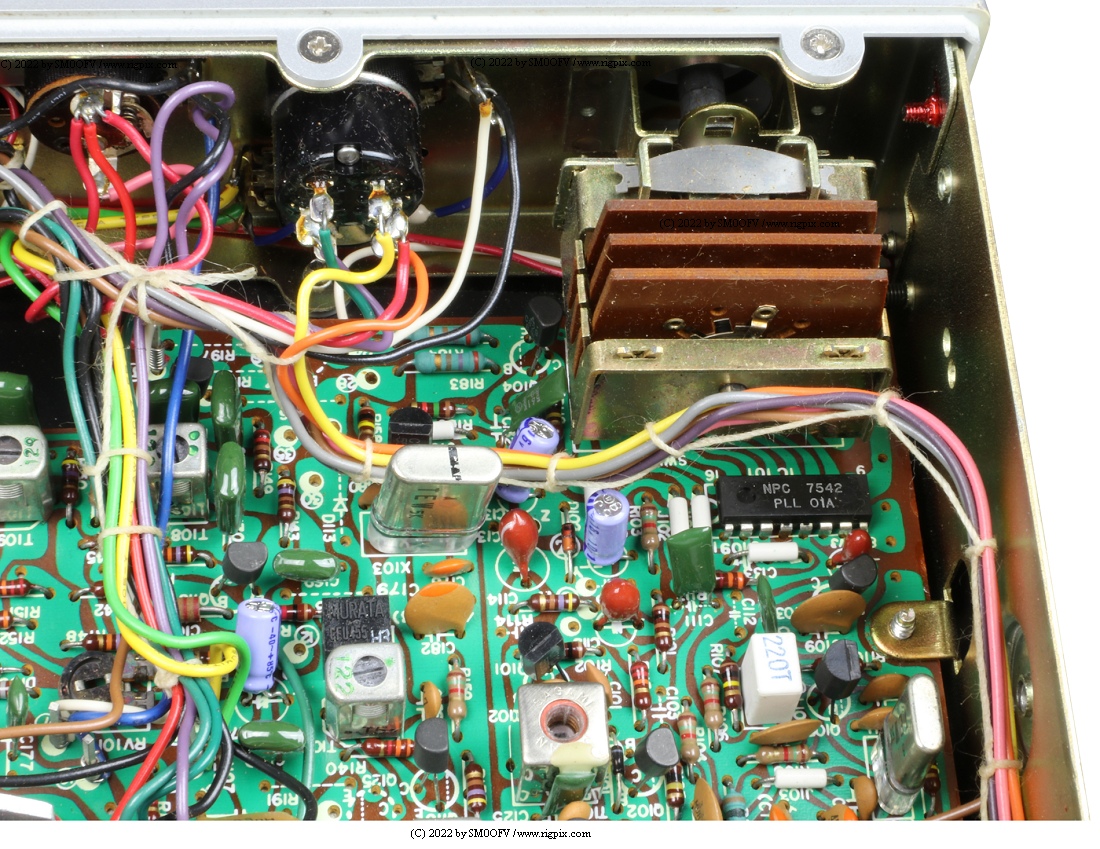

| Main PCB: |
PTBM027AOX by Cybernet Electronics Corporation
Single sided with through-hole components
|
| Sub PCBs: | None |
| Additional info: | |
| Related documents: |
RF driver: 2SC1760
RF final: 2SC1678
|
| Sams Photofact #: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
