| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | USA: 40
Sweden: 1-22 (RX/TX), 23-40 (RX only) |
| Mode: | AM |
| Frequency control: | PLL (MM58141) |
| Frequency stability: | ? ppm |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC ±15% (3-pin connector)
9 V battery for the clock |
| Current drain / power consumption: | RX: 500 mA (Squelched)
TX: 1.3 A (Unmodulated) |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Main unit: 165*57*191 mm (6.5*2.25*7.5")
Control mike: ? mm (?") |
| Weight: | Main unit: ? Kg (? lb)
Control mike: ? g (? oz) |
| Other features: |
NB. Range boost. Channel 9 button. Clock. One quick memory button.

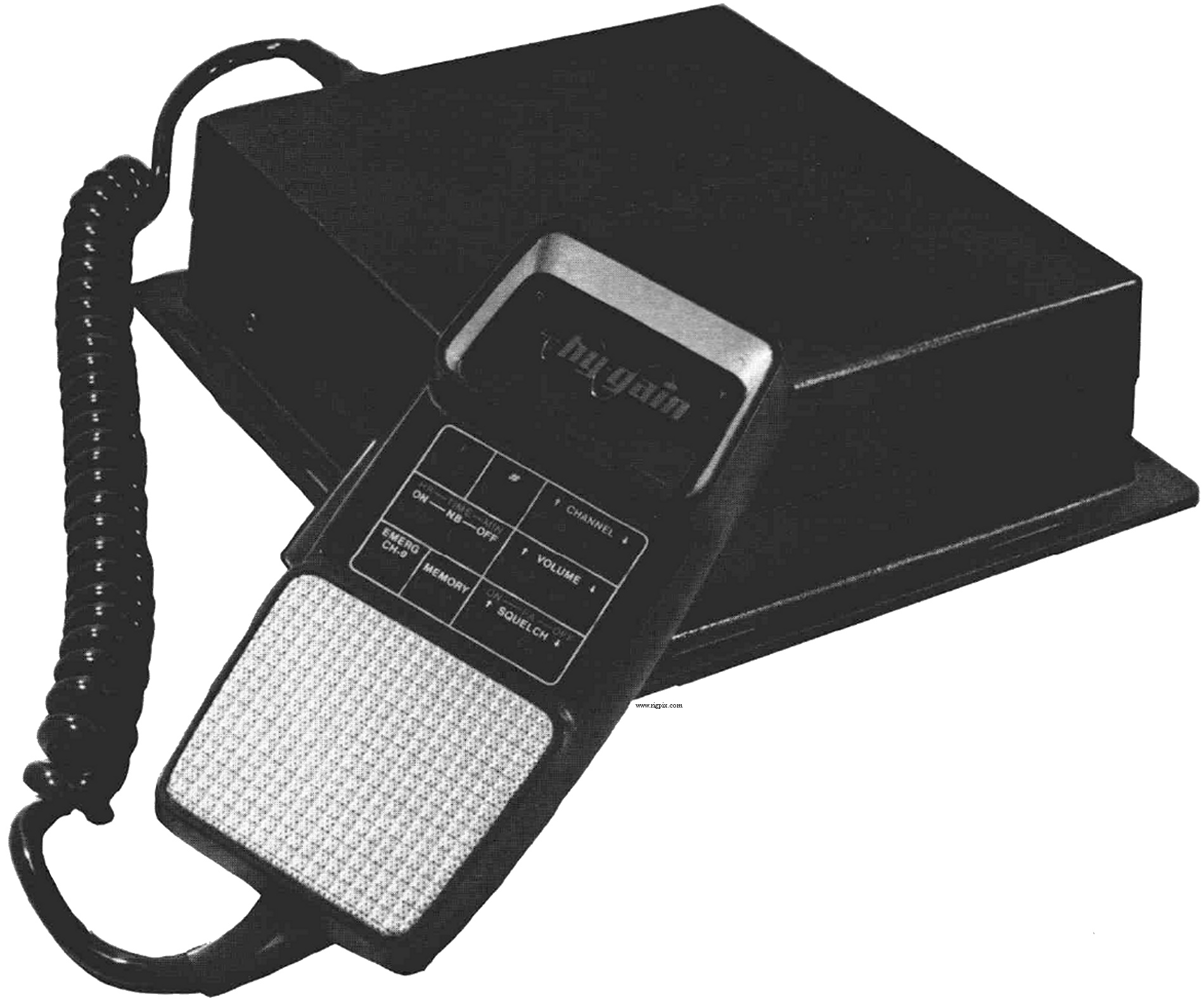

Remote control speaker-microphone with calculator type keyboard & display.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S/N) |
| Selectivity: | 6 KHz (-6 dB)
24 KHz (-80 dB) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | TS jack (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 9-pin (Large locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, (Assembled in Puerto Rico), 1977-197x (Discontinued) |
| Main PCB: | 750096 |
| Sub PCBs: |
750097 - Microphone control interface board
|
| Additional info: | New price 1977 in the US: $249.95 |
| Related documents: |
Service manual (8.8 MB)
AF amplifier: TA7205P
RF final: MRF472
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | Popular Electronics: October 1977 |
| Options / Accessories: |
|
?
|
Extension cable pack for trunk installation
|
|
