| GENERAL |

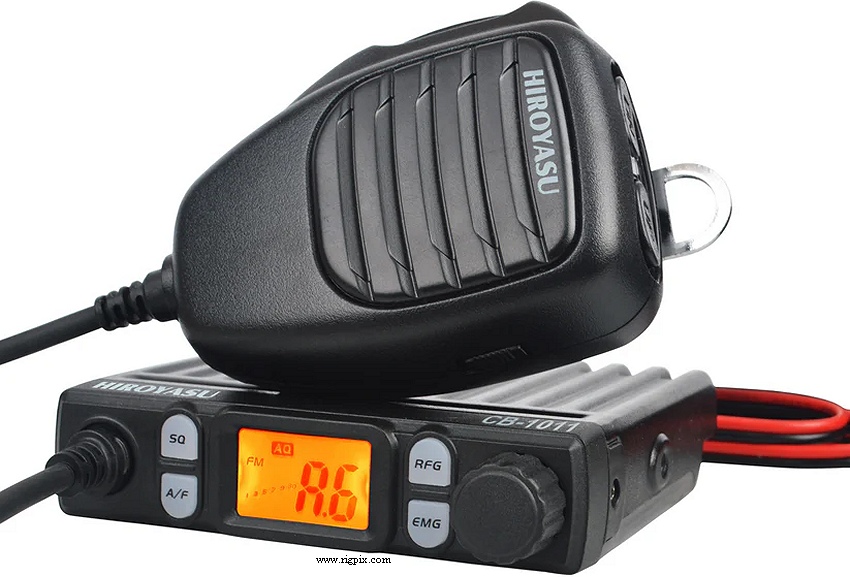

| Type: | Citizen band transceiver (Multinorm) |
| Frequency range: |
| CE: | 26.965-27.405 MHz |
| EU: | 26.965-27.405 MHz |
| dE: | 26.565-27.405 MHz |
| I2: | 26.855-27.265 MHz |
| PL: | 26.960-27.400 MHz |
| UK: | 27.60125-27.99125 MHz |
| In: | 26.965-27.275 MHz |
| US: | 26.965-27.405 MHz |
|
Channels / tuning steps
depending on setting: | 27, 36, 40 or 80 |
| Mode: | AM / FM |
| Frequency control: | PLL |
| Frequency stability: | ±5 ppm @ -20 to +50°C (-4 to +122°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC ±5% (Fixed power cord) |
| Current drain / power consumption: | RX: 300-800 mA
TX: Max 1 A @ 4 W output power |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 109*25*104 mm (4.3*0.98*4.1") |
| Weight: | 421 g (14.85 oz), with microphone |
| Other features: | ASQ. Channel 9/19 button (EMG). Scanning. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: LT455HT
|
| Sensitivity: | 1 uV (10 dB S+N/N) |
| Squelch sensitivity: | Less than 1 uV (Threshold) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 1 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
4 W (8 W)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -54 dBm |
| Microphone impedance / connector: | ? ohm / Fixed spiral cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China (By Shenzhen Esma Electronics Co.Ltd.), 2025-202x |
| Main PCB: |
XB198-MB-V1.7-VOX
Double sided with mainly SMD components
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
RF final: IRFZ24N
|
| Known markets and approvals: |
Europe
Multinorm
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
