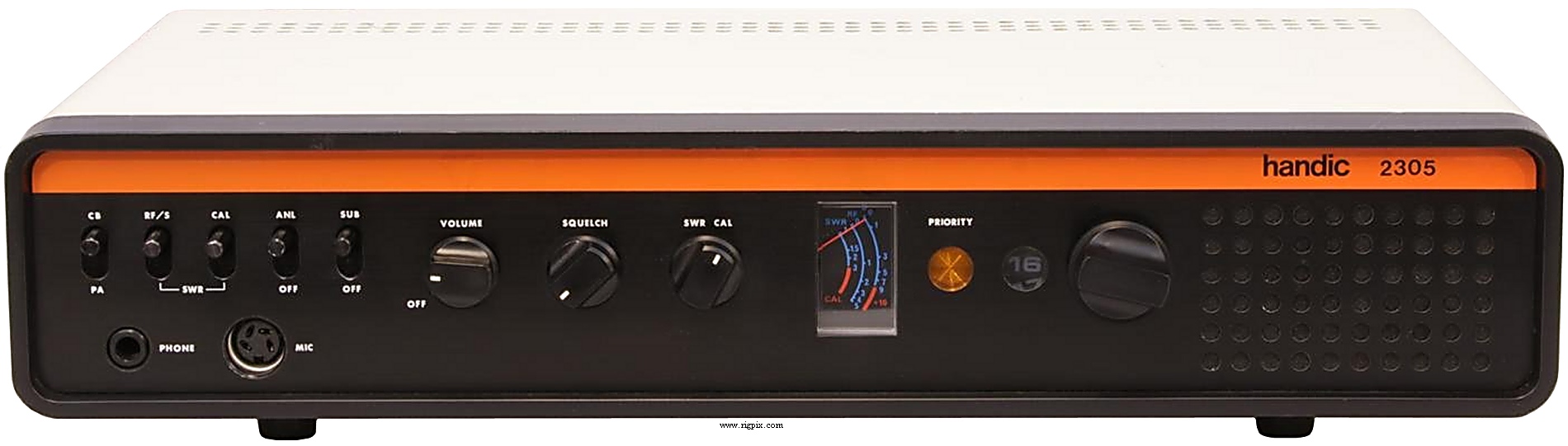

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: |
Sweden (Type A)
26.965-27.225 MHz
USA (Type B)
26.965-27.255 MHz
|
| Channels / tuning steps: | Type A: 23 (1-22 + 11A)
Type B: 23 (1-23) |
| Mode: | AM |
| Frequency control: | XTAL-matrix |
| Frequency stability: | ±0.003% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | Mains: 120 / 220 VAC (Fixed power cord)
or 13.8 VDC (Screw terminals) |
| Current drain / power consumption: | RX: ? W
TX: Less than 60 W @ mains |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 415*80*230 mm (16.34*3.15*9.06") |
| Weight: | 5.3 Kg (11.68 lb) |
| Other features: |
PA. ANL. SWR-meter. Selcall jack.
Sub receiver with one fixed channel and a separate
squelch control on the rear panel.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.6 MHz
2nd IF: 455 KHz (Main RX) - 255 KHz (Sub RX)
|
| Sensitivity: | Main RX: 0.5 uV (10 dB S+N/N)
Sub RX: 0.7 uV (10 dB S+N/N) |
| Squelch sensitivity: | Less than 1 uV (Threshold)
50 uV to 3 mV (Tight) |
| Selectivity: | Main RX: 20 KHz (-90 dB)
Sub RX: 20 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | 3.5 W at 10% distortion / 8 ohm |
| External speaker connector: | 6.3 mm (1/4") jack |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | Type A: ~3.5 W (5 W input)
Type B: 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin DIN |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (Designed in Sweden), 1974-1978 (Discontinued) |
| Main PCB: | GE-20B-5013 by GRE |
| Sub PCBs: |
GE-20C-5019 - AC power supply board
GE-20D-5029 - SWR board (Type A)
GE-20D-5129 - SWR board (Type B)
GE-20D-5266 - Buffer amplifier board
|
| Additional info: |
Superseded by the rare 2305VB which is basically the same
transceiver but with a built-in emergency selcall unit for
the sub RX and a black case.
New price 1976 in Sweden: SEK 1795:-
New price 1976 in the US: $280.00
|
| Related documents: |
User manual (2.4 MB, Eng/Swe/Ger)
Service manual (5.2 MB)
RF driver: 2SC1728
RF final: 2SC1816
|
| Market(s) / Approval(s): |
Sweden
Televerket Radio
USA
FCC Data: 2305
|
| Sams Photofact #: | CB-111 (February 1977) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
S-10
S-12
|
External selcall unit
External selcall unit
|
|
