| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: | 25.?-28.? MHz |
| Channels / tuning steps: | 240 (6*40) |
| Mode: | AM / FM / SSB / CW |
| Frequency control: | PLL (MC145106) |
| Frequency stability: | 0.003% (No temperature reference) |
| Clarifier or Delta tune: | ±1 KHz |
| Power supply: | Mains: 117 VAC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |

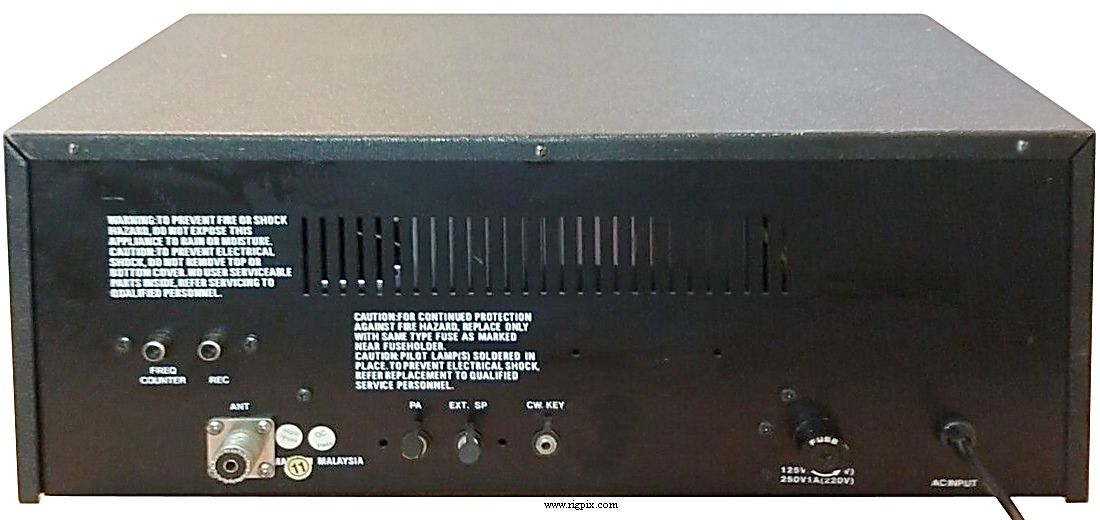

| Other features: | PA. Tone control. Rear frequency counter and recording jacks. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 1 uV (No S/N reference)
FM: 1 uV (No S/N reference)
SSB: 0.2 uV (No S/N reference)
CW: 0.2 uV (No S/N reference)
|
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | 50 dB |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 5 W
FM: 5 W
SSB: 12 W (PEP)
CW: 12 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Malaysia, 199x-199x (Discontinued) |
| Main PCB: | EPT360014B by Ranger |
| Sub PCBs: | |
| Additional info: | |
| Related documents: | PLL: MC145106 |
| Known markets and approvals: |
Export
No known approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
