| GENERAL |

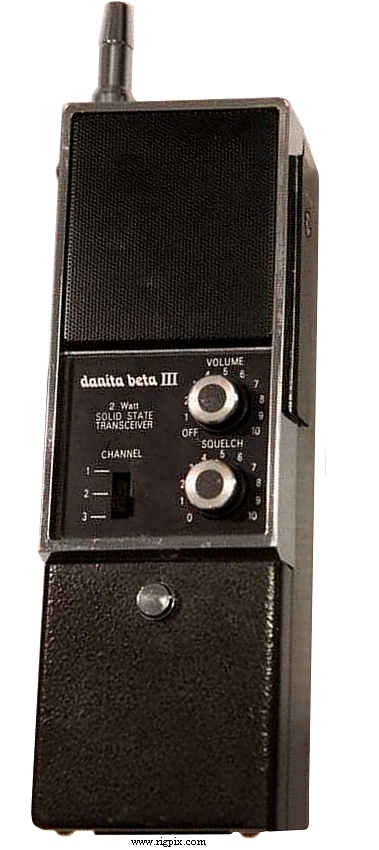

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 3 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12 VDC (Eight LR6 / AA batteries or NiCd pack)
or 12 VDC external (TS "Subminijack", 2.5 mm) |
| Current drain / power consumption: | RX: ? mA
TX: Max 150 mA |
| Antenna impedance / connector: | Fixed telescopic whip |
| Dimensions (W*H*D): | 79*235*64 mm (3.11*9.25*2.52") |
| Weight: | 625 g (1.38 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 1.8 uV (10 dB S+N/N) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~1 W (2 W input) |
| Modulation system: | |
| Max AM modulation (Factory set): | 90% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 8 ohm / Internal only |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 198x-198x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1985 in Sweden: SEK 375:-
New price 1987 in Sweden: SEK 496:-
|
| Related documents: |
Schematic diagram (653 KB)
|
| Known markets and approvals: |
Sweden (Beta III S)
Televerket: RI 3018/83
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
