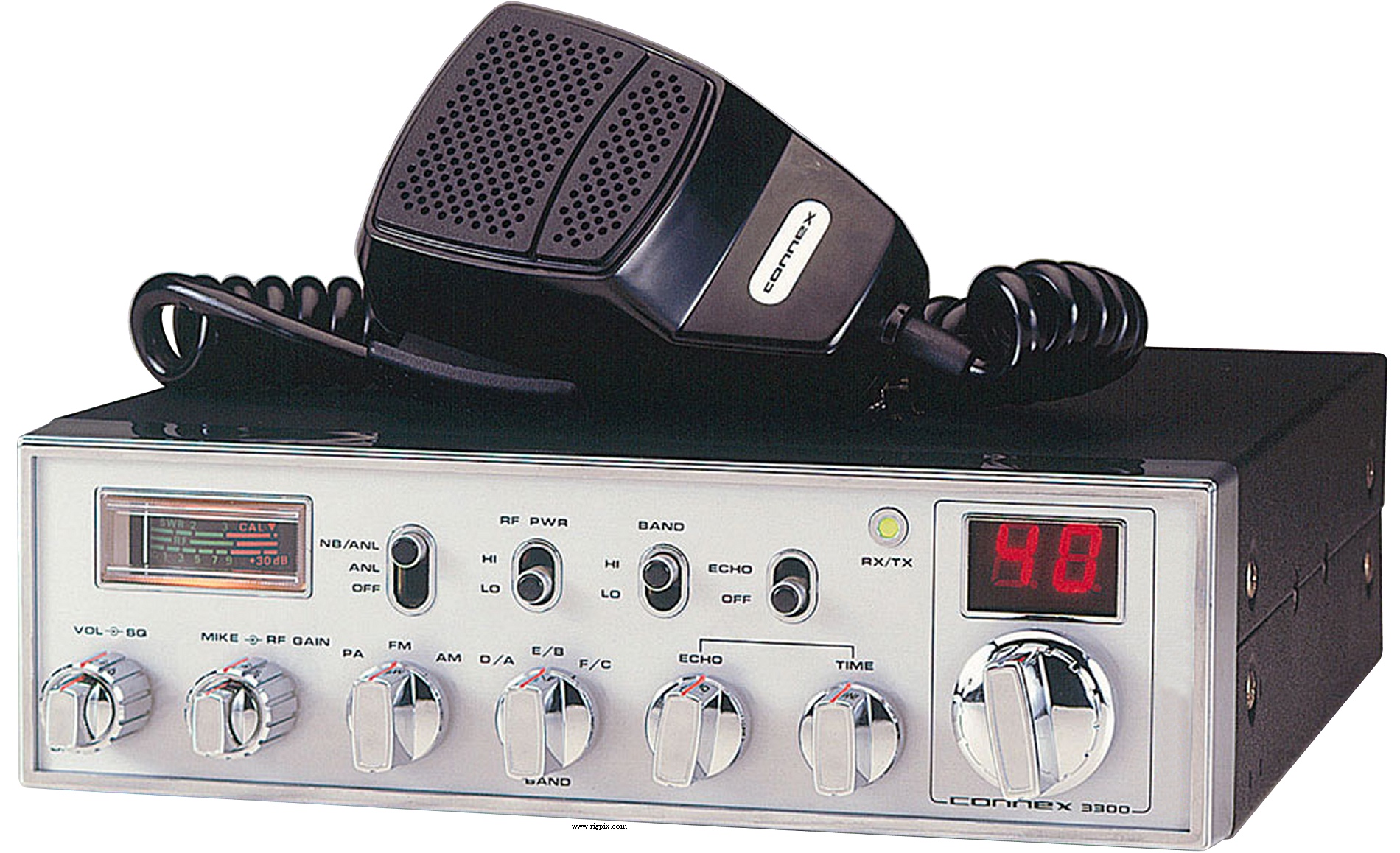

| GENERAL |
| Type: | Citizen band / Freeband / Export transceiver |
| Frequency range: |
25.615-28.305 MHz in six bands:
| A: | 25.615-26.055 MHz |
| B: | 26.065-26.505 MHz |
| C: | 26.515-26.955 MHz |
| D: | 26.965-27.405 MHz |
| E: | 27.415-27.855 MHz |
| F: | 27.865-28.305 MHz |
|
| Channels / tuning steps: | 240 (6*40) |
| Mode: | AM / FM |
| Frequency control: | PLL |
| Frequency stability: | 0.001% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 200*60*235 mm (7.88*2.38*9.25") |
| Weight: | 1.9 Kg (4.2 lb) |
| Other features: | PA. ANL/NB. Echo. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 1 uV (10 dB S+N/N)
FM: 1 uV (20 dB S+N/N)
|
| Squelch sensitivity: | Less than 0.5 uV (Threshold) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 50 dB |
| AF output power / speaker: | 2.5 W at 10% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 7 W
FM: 7 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Malaysia, 19xx-19xx (Discontinued) |
| Main PCB: |
EPT360014B by Ranger
Single sided with through-hole components
|
| Sub PCBs: |
EPT360022Z - Channel selector board
And others...
|
| Additional info: | |
| Related documents: | |
| Known markets and approvals: |
Export
No known approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
