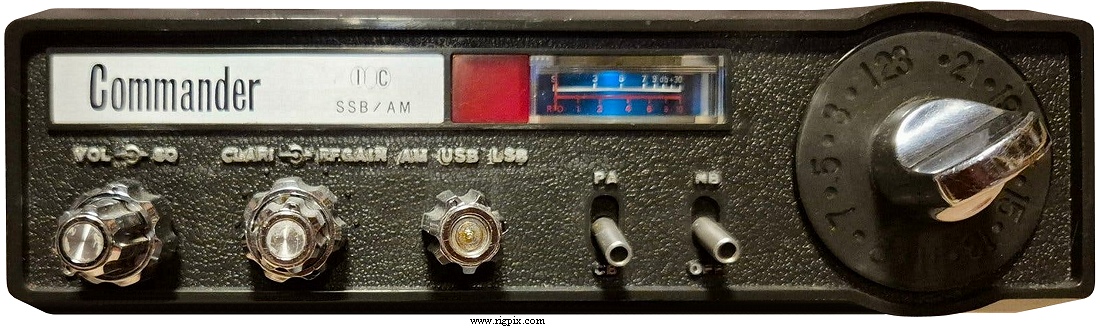

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 24 (1-23 + 11A) |
| Mode: | AM / SSB |
| Frequency control: | XTAL matrix |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ±500 Hz |
| Power supply: | 12 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 197*57*248 mm (7.75*2.25*9.75") |
| Weight: | 4.54 Kg (10 lb) |
| Other features: | PA. NB. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 7.8 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 1 uV (10 dB S+N/N)
SSB: 0.5 uV (10 dB S+N/N)
|
| Squelch sensitivity: |
1 uV (Threshold)
500 uV (Tight)
|
| Selectivity: |
AM: 6 KHz (-6 dB)
SSB: 3 KHz (-6 dB)
|
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | TS 1/4" jack |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: ~3.5 W (5 W input)
SSB: ~9 W PEP (15 W PEP input)
|
| Modulation system: |
AM: High level class B
SSB: Balanced modulator with crystal lattice filter
|
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | 2 Kohm / TRS 1/4" jack |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1972-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (4.5 MB, In swedish)
|
| Known markets and approvals: |
Sweden
Kungliga Telestyrelsen
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
