| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | XTAL matrix |
| Frequency stability: | 0.005% @ -20 to +40°C (-4 to +104°F) |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | Mains: 120 VAC (Fixed power cord)
or 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: |
RX: Max 1 A @ 13.8 VDC - Max 25 W @ 120 VAC
TX: Max 1.6 A @ 13.8 VDC - Max 55 W @ 120 VAC
|
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 340*146*321 mm (13.38*5.75*12.62") |
| Weight: | 4.54 Kg (10 lb) |
| Other features: | PA. ANL. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 11.275 MHz
2nd IF: 455 KHz
|
| Sensitivity: | Less than 1 uV (10 dB S+N/N) |
| Squelch sensitivity: | Less than 1 uV (Threshold) |
| Selectivity: | 4 KHz (-6 dB)
20 KHz (-40 dB) |
| Image rejection: | |
| AF output power / speaker: | 2.5 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | High and low level class B |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1974-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price, march 1974 in the US: $240.00
|
| Related documents: |
User manual (3 MB)
|
| Known markets and approvals: |
USA
FCC: Type accepted no 89A
|

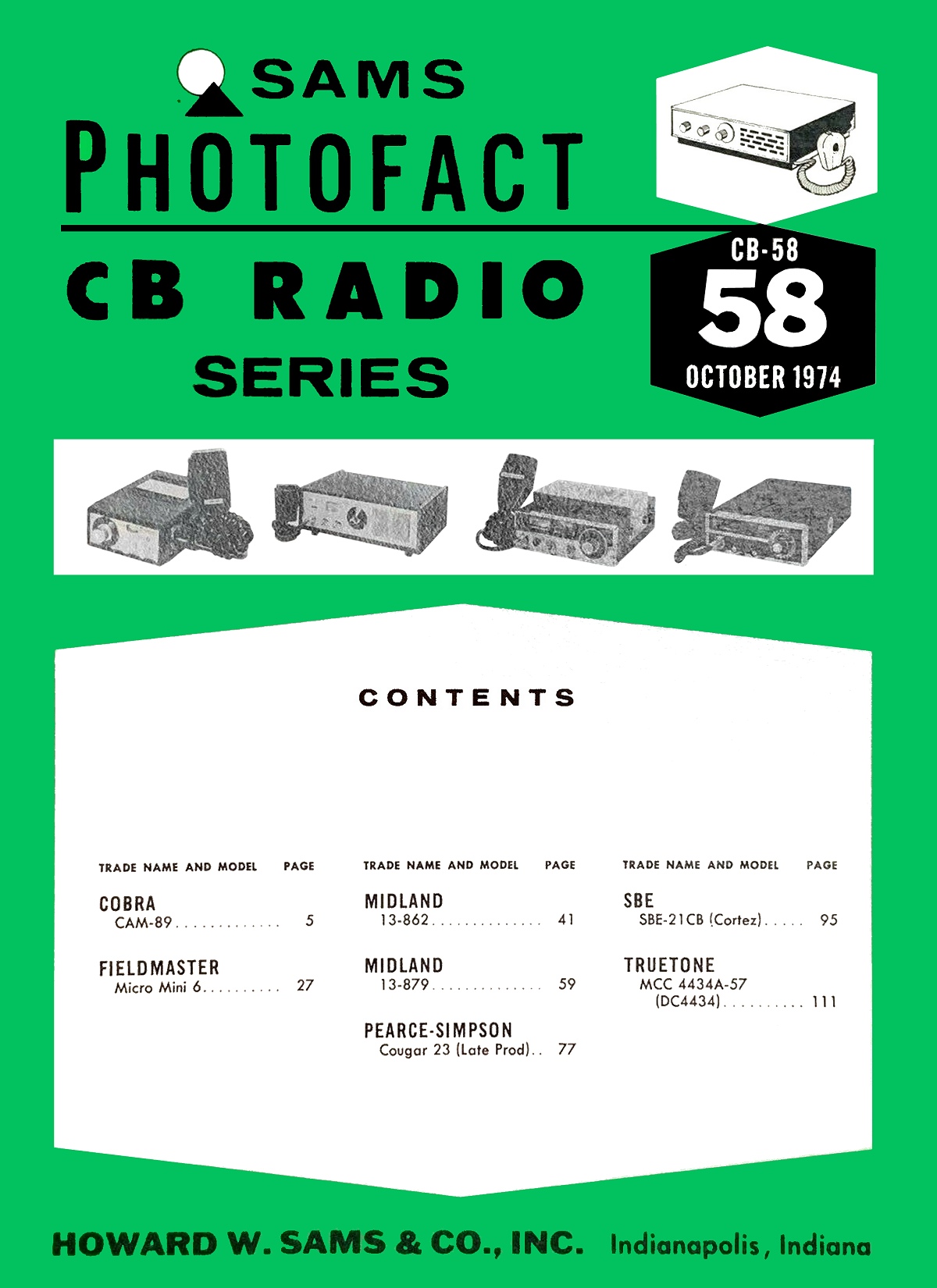

| Sams Photofact #: | CB-58 (October 1974) |
