| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (MC145106) |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | ±? KHz "Clear tune" |

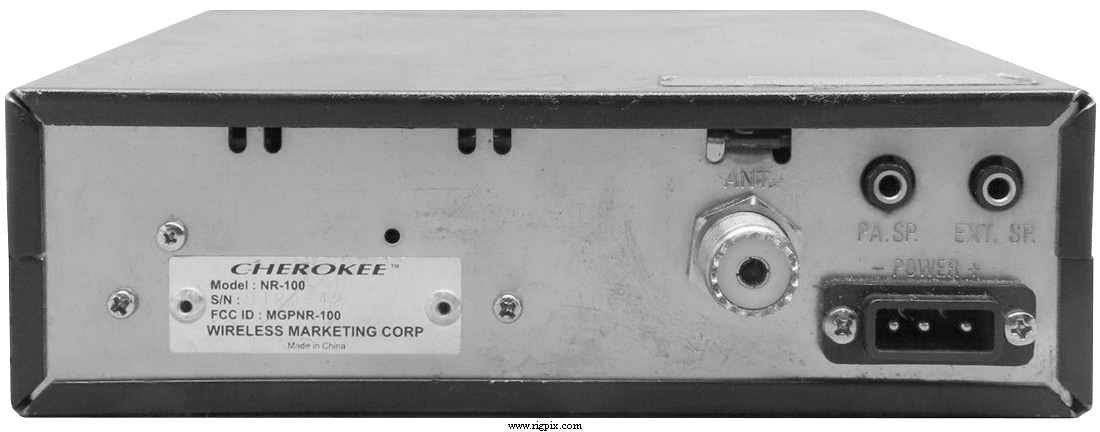

| Power supply: | 13.8 VDC (3-pin male jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 183*60*232 mm (7.19*2.38*9.12") |
| Weight: | ? Kg (? lb) |

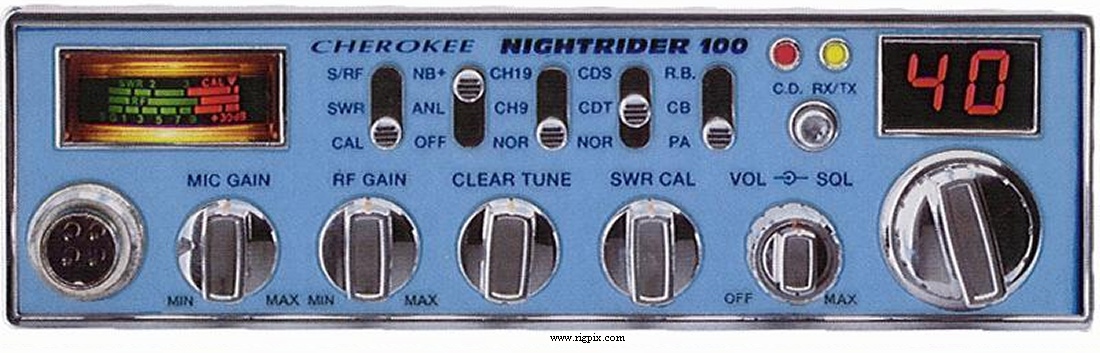

| Other features: |
PA. ANL/NB. Dimmer. EL backlit face plate. Channel 9/19 switch.
"Clear drive" audio compander. SWR-meter.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 1999-200x (Discontinued) |
| Main PCB: |
FCC ID: MGPNR-100
|
| Sub PCBs: | |
| Additional info: | New price 2000 in the US: $199.95 MSRP |
| Related documents: |
PLL: MC145106
RF pre driver: 2SC1973
RF driver: 2SC2166
RF final: 2SC1969
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | Popular Communications: February 2000 |
| Options / Accessories: |
|
