| GENERAL |

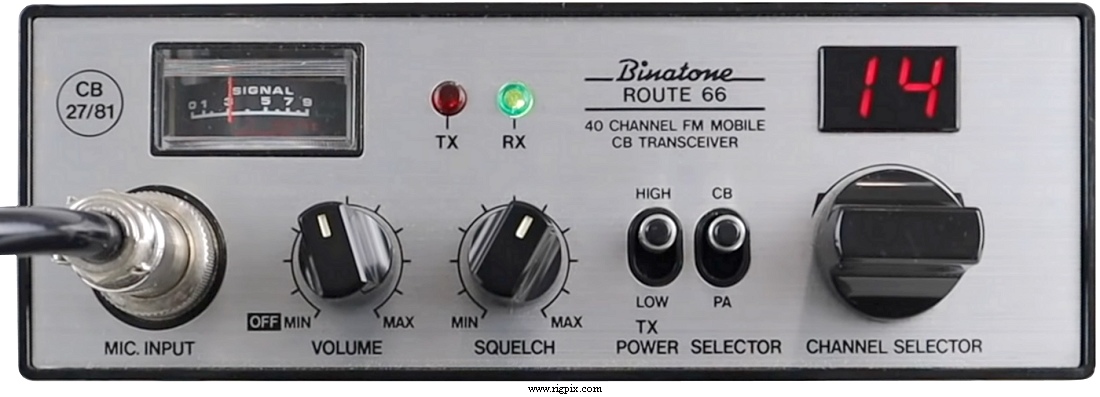

| Type: | Citizen band transceiver |
| Frequency range: | 27.60125-27.99125 MHz |
| Channels / tuning steps: | 40 (UK CB 27/81) |
| Mode: | FM |
| Frequency control: |
Early version (Model 01/8538): PLL02A
Later version (Model 01/8538A): LC7137
|
| Frequency stability: | Less than ±750 Hz (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 350 mA (Squelched)
TX: 0.9 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 162*58*210 mm (6.38*2.28*8.27") |
| Weight: | 1.5 Kg (3.3 lb) |
| Other features: | PA. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (12 dB SINAD) |
| Squelch sensitivity: | 10 uV ±5 dB (Tight) |
| Selectivity: | 4 KHz (-6 dB)
20 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | Hi: 4 W
Lo: 400 mW |
| Modulation system: | |
| Max FM deviation (Factory set): | ±2.5 KHz |
| Spurious emissions: | Better than 0.25 uW |
| Microphone impedance / connector: | 600 ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1981-198x (Discontinued) |
| Main PCB: |
Early: ?
Later: P-019?
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (9.7 MB)
PLL (Early): PLL02A
PLL (Later): LC7137
|
| Market(s) / Approval(s): |
UK
Ofcom: ?
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
