| GENERAL |

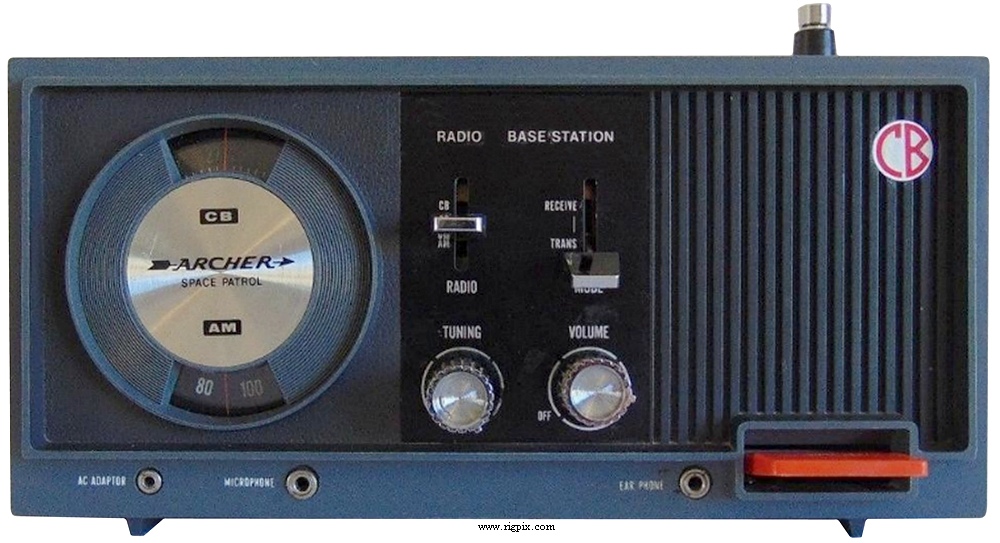

| Type: | Citizen band transceiver |
| Frequency range: | RX: 0.51-1.6 / 26.960-27.260 MHz
TX: 27.125 MHz |
| Channels / tuning steps: | RX: 23
TX: 1 |
| Mode: | AM |
| Frequency control: | RX: VFO
TX: XTAL |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 9 VDC (Six LR20 / D batteries) or 9 VDC external |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | - / Fixed telescopic whip |
| Dimensions (W*H*D): | 254*127*121 mm (10*5*4.75") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: ? KHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | Max 100 mW |
| Modulation system: | |
| FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 3.5 mm |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1970-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1970 in the US: $27.95
New price 1976 in the US: $42.95
|
| Related documents: | |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
