| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
Standard
26.965-27.855 MHz
Expanded
24.500-30.105 MHz
|
| Channels / tuning steps: |
Standard: 80
Expanded: 600
|
| Mode: | AM / FM / SSB |
| Frequency control: | PLL |
| Frequency stability: | 0.001% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 12-14 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 128*25*101 mm (5.04*1.05*3.98") |
| Weight: | 478 g (1.05 lb) |
| Other features: |
ANL/NB. Dual watch. Scanning. Noise reduction (NRC). ASQ.
Roger beep. Echo. Selectable backlite colors. Talkback.
VOX. PC programmable. CTCSS/PL and DCS option.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM/FM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2025-202x |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |

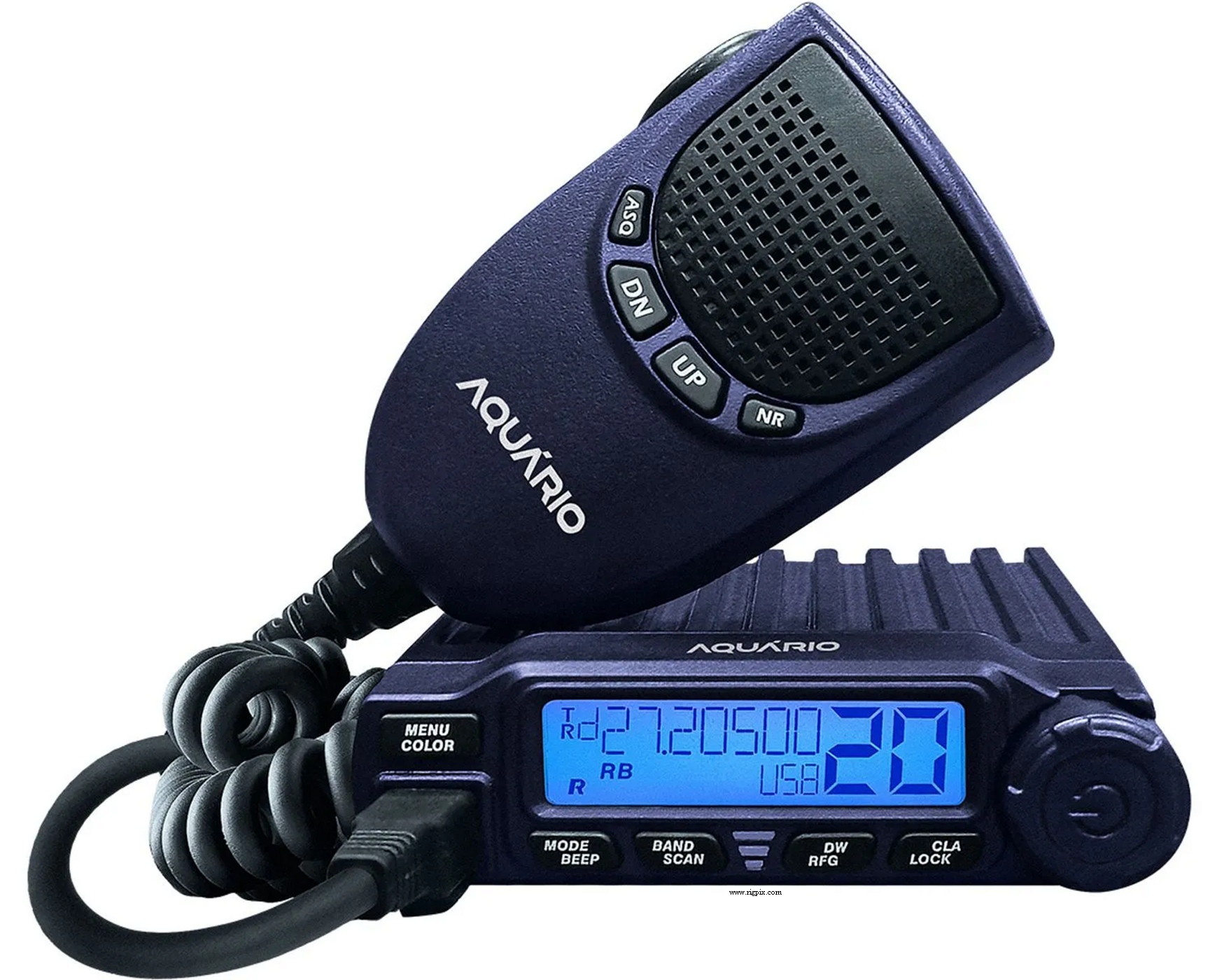

The world's first micro sized SSB capable mobile CB radio.
|
| Related documents: | |
| Known markets and approvals: |
Brazil (Standard)
Anatel: 066382402250
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
