| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: | 25.165-29.695 MHz |
| Channels / tuning steps: | 454 channels or 1 / 10 / 100 KHz steps |
| Mode: | AM / FM / SSB / CW |
| Frequency control: | PLL/CPU (SY204) |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | ±1 KHz |

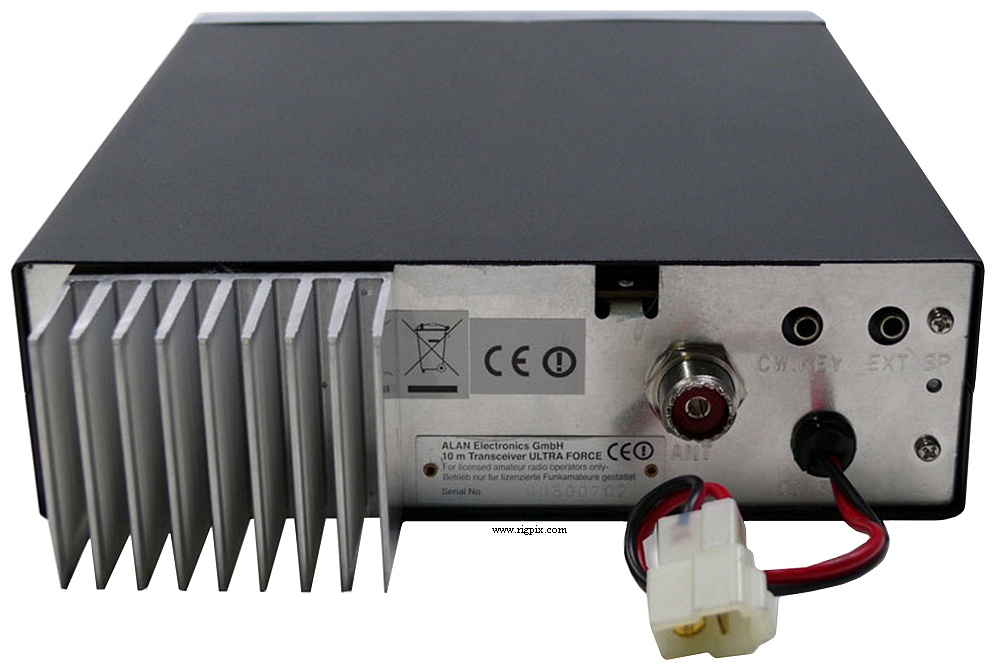

| Power supply: | 13.8 VDC ("T" connector on pigtail) |
| Current drain / power consumption: | RX: 500 mA
TX: Max 6 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 197*63*273 mm (7.75*2.48*10.75") |
| Weight: | ? Kg (? lb) |
| Other features: |
5 memories with scanning. NB/ANL. Dimmer
Echo chamber. Roger beep. Repeater shift.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (AM/SSBCW)
IF: 10.695 MHz
Double conversion superheterodyne (FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM/SSB: 0.25 uV (10 dB S+N/N)
FM: 0.3 uV (12 dB SINAD)
|
| Selectivity: |
AM/FM: 6 KHz (-6 dB), 18 KHz (-60 dB)
SSB: 4.2 KHz (-6 dB), 8.5 KHz (-60 dB)
|
| Image rejection: | 70 dB |
| AF output power / speaker: | 2 W at 7% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 8 W
FM: 30 W
SSB: 30 W (PEP)
CW: 30 W
|
| Modulation system: |
AM: Voltage modulation
FM: Frequency modulation
SSB: Balanced modulation
|
| Max FM deviation (Factory set): | ±2 KHz |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | 600 ohm / 6-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Korea, 200x-201x |
| Main PCB: | JPMXX0276B by ? |
| Sub PCBs: |
JPFXX0187B - Front panel board
|
| Additional info: | |
| Related documents: |
User manual (650 KB)
Service manual (2 MB)
AF amplifier: KIA7217AP
RF driver: 2SC2166
RF finals: Two 2SC1969
|
| Sams Photofact #: | None |
| Modifications and fixes: | Frequency expansion (603 KB) |
| Reviews: | |
| Options / Accessories: |
|
