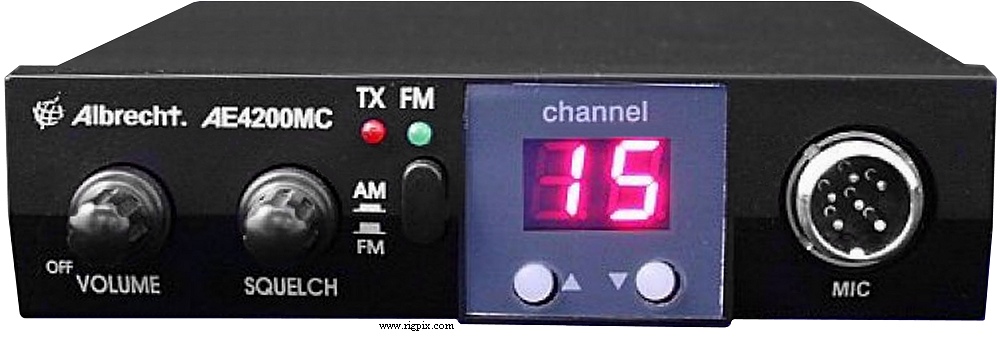

| GENERAL |
| Type: | Citizen band transceiver, multinorm |
Frequency range
depending on setting: |
26.965-27.405 MHz (40/40)
26.565-27.405 MHz (80/40)
26.965-27.405 MHz (40FM)
|
Channels / tuning steps
depending on setting: | 40 or 80 |
| Mode depending on setting: | AM / FM or FM only |
| Frequency control: | PLL (TB31202) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | Channel 9/19 button (On the mike). Scanning. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz - Ceramic filter: CFW455HT
|
| Sensitivity: |
AM: 1.4 uV (20 dB SINAD)
FM: 1.4 uV (12 dB SINAD)
|
| Squelch sensitivity: | |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 48 dB |
| AF output power / speaker: | 2 W at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 1 W
FM: 4 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±2 KHz |
| Spurious emissions: | Better than -90 dBc |
| Microphone impedance / connector: | ? ohm / 6-pin (Male locking ring jack) |
| Microphone input level: | 2.5 mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2005-20xx (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (148 KB)
Schematic diagram (792 KB)
PLL: TB31202
FM/IF: BA403
AF amplifier: TDA2003
RF driver: 2SC2314
RF final: 2SC2078
|
| Known markets and approvals: |
Europe
Multinorm
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
