| GENERAL |

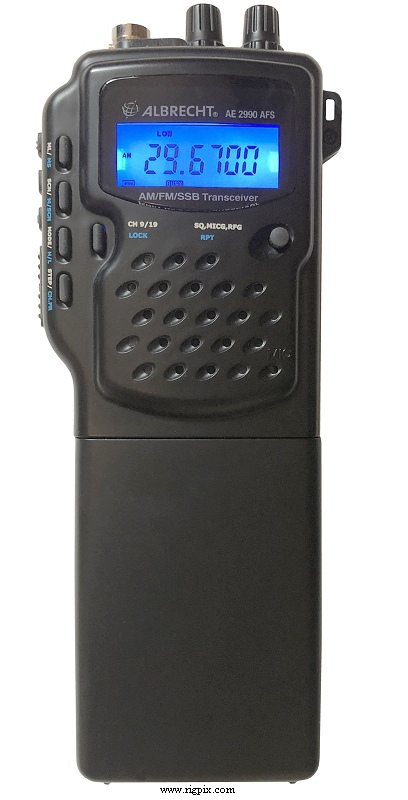

| Type: | Citizen band transceiver, multinorm |
Frequency range
depending on setting: |
| E: | 26.965-27.405 MHz |
| EU: | 26.965-27.405 MHz |
| d: | 26.565-27.405 MHz |
| PL: | 26.960-27.4005 MHz |
| U!: | 27.60125-27.99125 MHz |
| U2: | 26.965-27.405 MHz |
| US: | 26.965-27.405 MHz |
| 0: | 10+12 m ham bands |
| 1: | 28.000-29.690 MHz (10 m ham band) |
| 2: | 24.890-24.990 MHz (12 m ham band) |
| 3: | 25.165-29.655 MHz |
| 4: | 25.160-29.650 MHz |
|
Channels/tuning steps
depending on setting: | 40/80/454 channels or 500 Hz, 10 / 100 KHz steps |
| Mode, depending on setting: | AM / FM / SSB |
| Frequency control: | PLL |
| Frequency stability: | ? ppm |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 10.8-13.5 VDC (Nine R6 / AA alkaline or NiMH batteries) |
| Current drain / power consumption: | RX: 110-180 mA
TX: Max 1.3 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 63*169*39 mm (2.48*6.65*1.54") |
| Weight: | 225 g (7.94 oz), without antenna and batteries |
| Other features: |
CTCSS/PL (88.5 Hz). Instant ch 9/19 button. 5 memories. Scanning.
Roger beep. 0-990 KHz repeater offset for ham use.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Hi: 4 W
Lo: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-conductor (2.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Philippines, 2010-202x |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | New price 2019 in Germany: 265.00 Euro |
| Related documents: |
User manual (1.8 MB, En/De/Fr)
Service manual (5.1 MB, En/De)
|
| Approval / Market: |
Europe
73/23/EEC (LVD), 2004/108/EG (EMC) and 99/5/EC (R&TTE)
EN 300 135-2 and EN 300 433-2
EN 301 489-1, EN 301 489-13 and EN 60 950-1:2006-2
|
| Sams Photofact #: | None |
| Modifications and fixes: | Frequency expansion (56 KB) |
| Reviews: | |
| Options / Accessories: |
DG-630
NTS-2000
SM-400
SM-500
?
?
?
|
Desktop charger
DC converter. 12/24 VDC, 2 A
Speaker-microphone
Speaker-microphone
Mobile adapter
Battery case. 9*R6/AA alkaline or NiMH cells
Flexible CB antenna. 24 cm (9.45").
|
|
