Uniden Bearcat UBC-105XLT

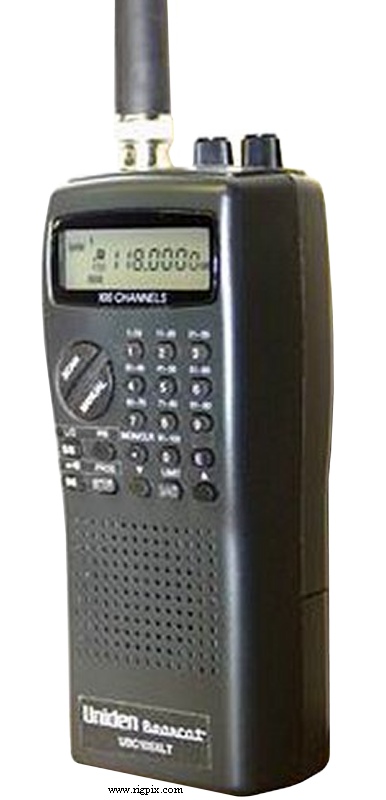

A picture of Uniden Bearcat UBC-105XLT

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range:29-54 / 108-174 / 406-512 MHz
Tuning steps:5 / 8.33 / 12.5 KHz
Frequency stability:? ppm
Mode:AM / FM
Channels / memory management: 100 regular @ 17 channels per second
1 priority
RAM storage with capacitor backup. Up to 60 minutes
memory retention without batteries
Power supply:4.8-6 VDC (Four R6 / AA NiCd or Alkaline batteries)
or 9 VDC external
Current drain / power consumption:? mA
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):65*147*43 mm (2.56*5.79*1.69")
Weight:216 g (7.62 oz), without batteries
Other features:Backlit display.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity: HF/VHF-Lo: 0.4 uV
108-137 MHz: 1.4 uV
137-174 MHz: 0.6 uV
UHF: 0.5 uV
Selectivity:10 KHz (-6 dB)
17 KHz (-50 dB)
Image rejection:
AF output power / speaker:230 mW at ?% distortion / 8 ohm
External speaker connector:




MISCELLANEOUS
Manufactured:200x-200x (Discontinued)
Additional info:
Related documents:User manual (4 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
