Uniden Bearcat UBC-100XL

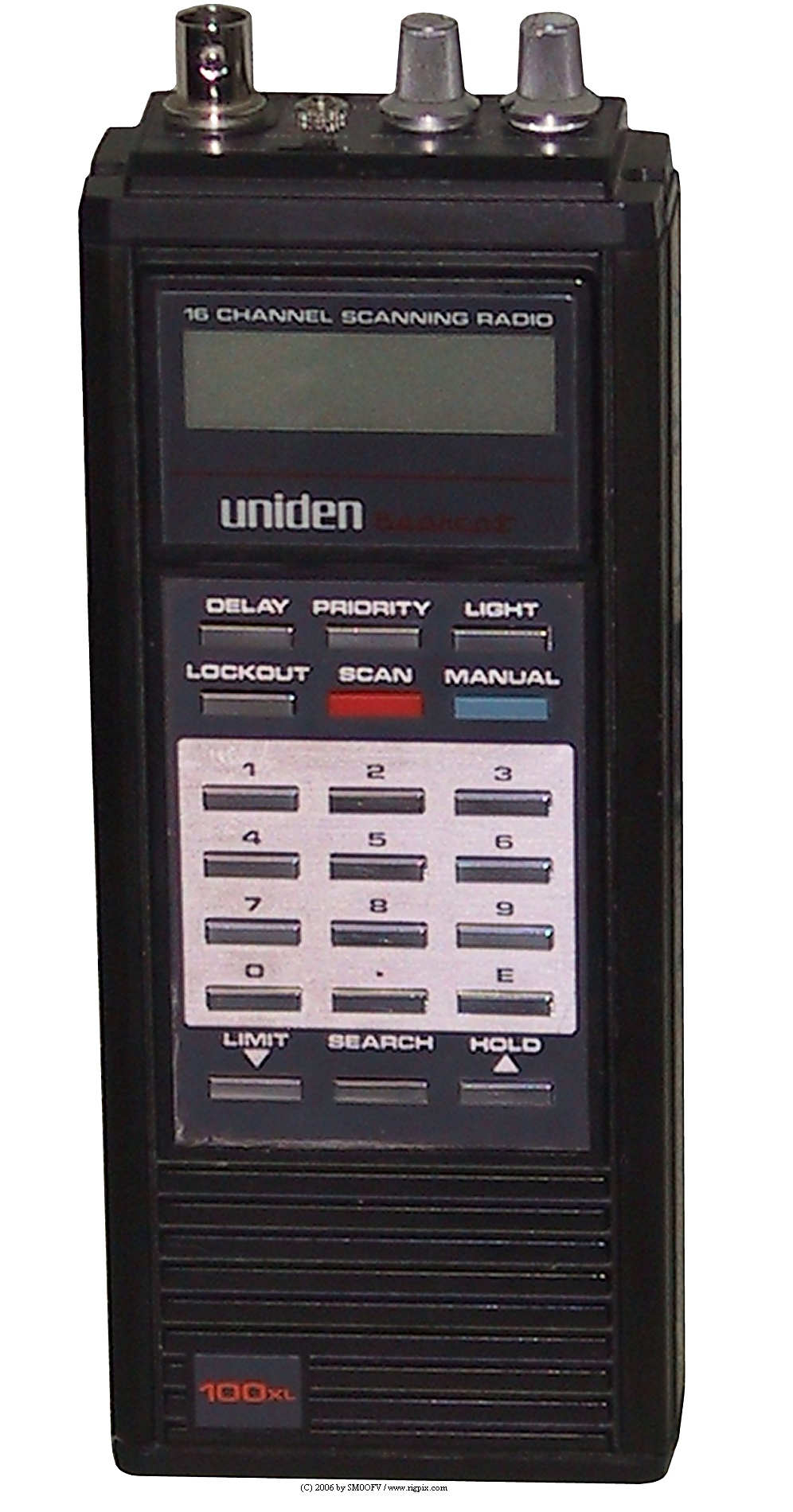

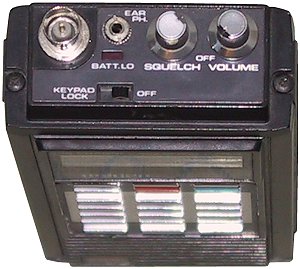

A picture of Uniden Bearcat UBC-100XLA top picture of Uniden Bearcat UBC-100XL

SPECIFICATIONS

GENERAL
Type:VHF/UHF receiver/scanner
Frequency range:66-88 / 118-174 / 406-512 MHz
Tuning steps:? / ? KHz
Frequency stability:? ppm
Mode:AM / FM
Channels / memory management: 16 regular @ 15 channels per second
10 search bands
1 priority
RAM storage, no dedicated battery backup
Power supply:7.2 VDC (Six R6 / AA NiCd batteries)
or 6-12 VDC external
Current drain / power consumption:? mA
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):73*178*35 mm (2.87*7.01*1.38")
Weight:375 g (13.23 oz), without batteries
Other features:




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz - Ceramic filter: Murata CFU455
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Taiwan, 198x-198x (Discontinued)
Additional info:
Related documents: AF-amp: TBA820M
FM-IF: MC3359P
Prescaler: MB504
Modifications and fixes:
Reviews:
Options / Accessories:
- -
