| GENERAL |

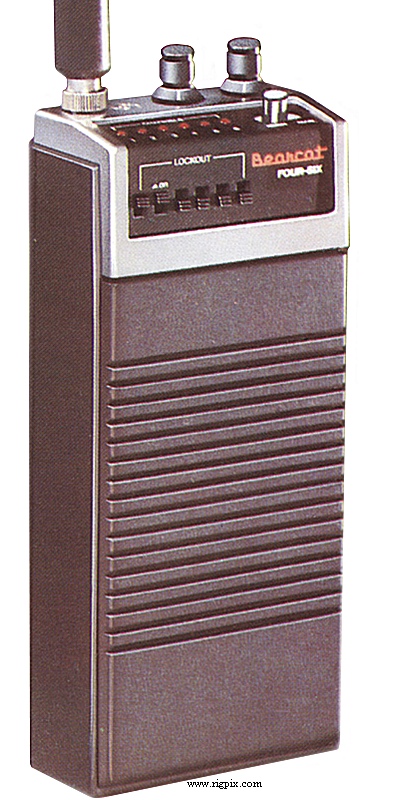

| Type: | VHF/UHF receiver/scanner |
| Frequency range: |
33-47 / 152-164 / 450-512 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
6 regular @ 8 channels per second
One XTAL per channel
|
| Power supply: | 4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)
or 6 VDC external |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50 ohm / Threaded jack |
| Dimensions (W*H*D): | 73*170*42 mm (2.88*6.68*1.67") |
| Weight: | 340 g (12 oz) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | <1 uV |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 300 mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1979-198x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
