| GENERAL |

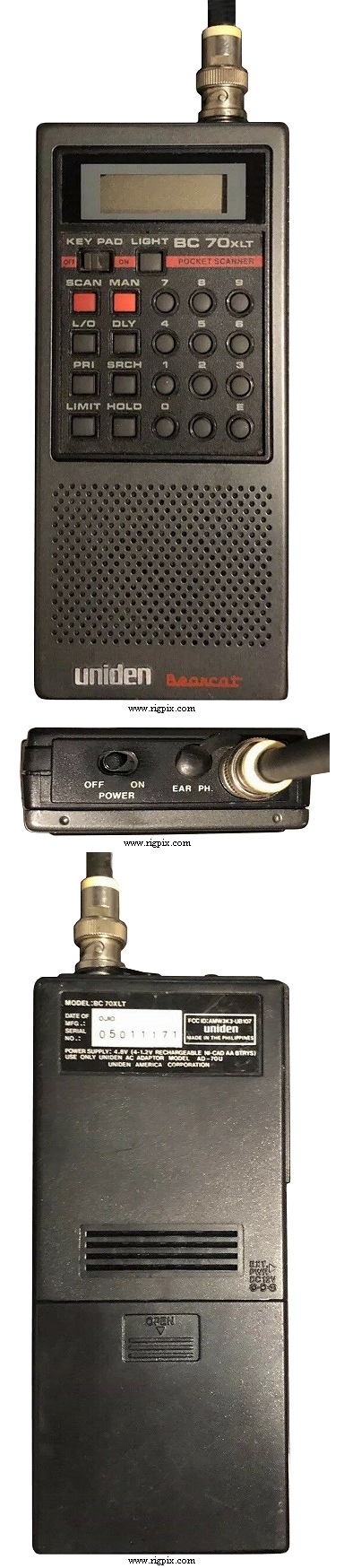

| Type: | VHF/UHF receiver/scanner |
| Frequency range: | 29-54 / 136-174 / 406-512 MHz |
| Tuning steps: | 5 KHz |
| Frequency stability: | |
| Mode: | FM |
| Channels / memory management: |
20 regular @ 15 channels per second
1 search range
1 priority
RAM storage
|
| Power supply: | 4.8 VDC (NiCd battery pack)
or 12 VDC external (Male mini barrel jack, center positive) |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 70*155*25 mm (2.76*6.1*0.98") |
| Weight: | 305 g (10.76 oz) |
| Other features: | Backlit display. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: |
29-54 MHz: 0.4 uV
137-174 MHz: 0.5 uV
406-512 MHz: 0.7 uV
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | 50 KHz (-55 dB) |
| Image rejection: | |
| AF output power / speaker: | 140 mW at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (2.5 mm), 8-16 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan (Early) and Philippines (Later), 1986-199x (Discontinued) |
| Additional info: | FCC ID: AMW3K3-UB107 |
| Related documents: | User manual (2.7 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AD-70U
BP-70
UA-502
UA-502A
|
AC adapter
NiCd battery pack
Vehicle power cord
Coiled power cord
|
|
