| GENERAL |
| Type: | Analog audio baby monitor |
| Band / Frequency range: |
USA
904.0-904.9 MHz
|
| Channels: | 10 |
| Transmission mode: | FM |
| Claimed max range: | Indoors: ? m (? ft)
Line of sight: ? m (? ft) |
| Power supply: |
Parent unit:
3.7 VDC (650 mAh Li-Ion battery)
or 6 VDC external (Male mini barrel jack, center positive)
Baby unit:
3.7 VDC (650 mAh Li-Ion battery)
or 6 VDC external (Male mini barrel jack, center positive)
|
| Current drain / power consumption: | Parent unit: ? mA
Baby unit: ? mA |
| Average battery life: | Parent unit: ? hrs
Baby unit: ? hrs |
| Dimensions (W*H*D): | Parent unit: 53*84*23 mm (2.09*3.31*0.91")
Baby unit: 53*84*23 mm (2.09*3.31*0.91"), excluding the hook |
| Weight: | Parent unit: 76 g (2.68 oz), with belt clip
Baby unit: 73 g (2.58 oz) |
| Other features: | VOX. Out-of-range alert. |
|
|
|
|
| RECEIVER / PARENT UNIT |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER / BABY UNIT |
| RF output power: |
Less than 2 mW ERP
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±9 KHz (Estimated) |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / Internal only |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2013-201x (Discontinued) |
| Additional info: |

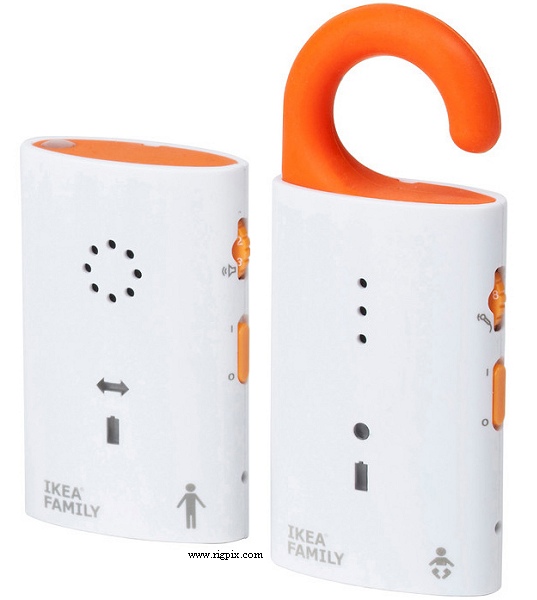

IK88R is the parent unit.
IK88T is the baby unit.
FCC ID: FHOIK88T.
|
| Related documents: | User manual (2.9 MB, Multilanguage) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
