Misumi WCS-99XII-S

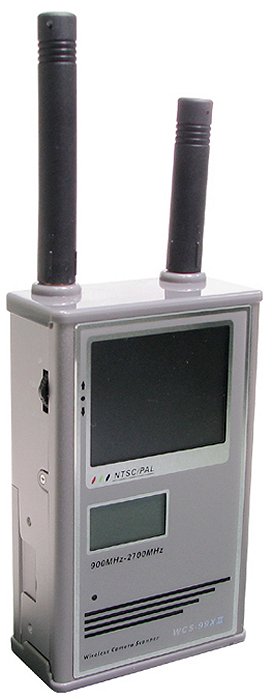

A picture of Misumi WCS-99XII-S

SPECIFICATIONS

GENERAL
Type:UHF video receiver/scanner/"Camera detector"
Frequency range: 900-2700 MHz
Tuning steps:
Frequency stability:±? ppm
Video mode:FM (PAL / NTSC)
Audio mode:FM, 5.5-6.5 MHz subcarrier (Auto detect)
Power supply:4.8-6 VDC (Four LR6 / AA batteries)
or 5 VDC external
Current drain / power consumption:Max 650 mA
Antenna impedance / connector:50 ohm / Two SMA
Dimensions (W*H*D):74*123*35 mm (2.91*4.84*1.38")
Weight:280 g (9.88 oz)
Other features: 2.5" color TFT. Scans whole range in 15 seconds! AV output jack.
S-meter and frequency on separate LCD.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity: -? dBm (Treshold for noise free video)
-? dBm (Treshold for loss of color)
-? dBm (Treshold for loss of sync)

NB! The treshold for loss of color and sync is
approximate and can differ between monitors
Selectivity:
Image rejection:
AF output power / speaker:No audio
Output impedance / connector:




MISCELLANEOUS
Manufactured:2008-20xx (Discontinued)
Additional info: Super for ham use on 23 & 13 cm, but also for monitoring of domestic
video senders, surveillance cameras and more.
