Misumi MST-AB400M

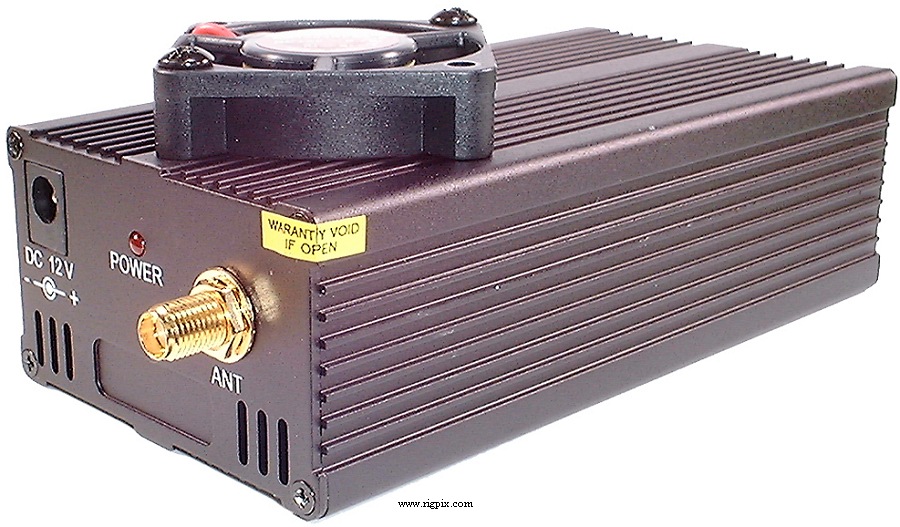

A picture of Misumi MST-AB400M

SPECIFICATIONS

GENERAL
Type:UHF video transmitter
Frequency range: 2.4 GHz (4 channels)
Ch1: 2.413 GHz
Ch2: 2.432 GHz
Ch3: 2.451 GHz
Ch4: 2.470 GHz
Tuning steps:Channelized
Frequency stability:±? ppm
Video mode:FM
Audio mode:FM, 5.5 MHz subcarrier
Power supply:12 VDC (Barrel connector, center positive)
Current drain / power consumption:Max 1.6 A
Antenna impedance / connector:50-75 ohm / SMA
Dimensions (W*H*D):61*35*118 mm (2.4*1.38*4.65")
Weight:316 g (11.15 oz)
Other features:




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
Max FM deviation (Factory set): Audio: ? KHz
Video: ? MHz
Spurious emissions:
Input impedance / connector: Audio: ? / ?
Video: ? / ?




MISCELLANEOUS
Manufactured:200x-20xx (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
