DF9CR 3cm FM-ATV-TX

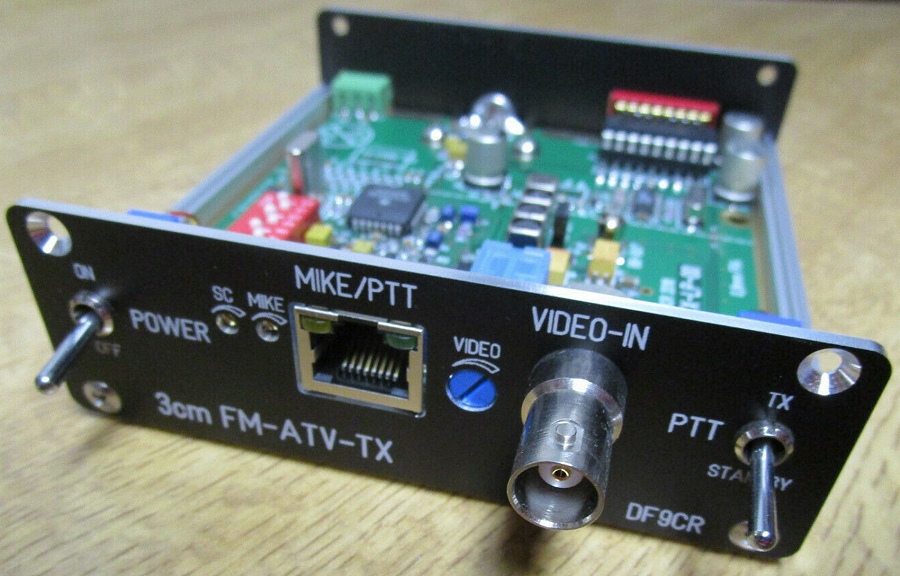

A picture of DF9CR 3cm FM-ATV-TX

SPECIFICATIONS

GENERAL
Type:Amateur SHF ATV transmitter
Frequency range: 10200-10455 MHz (3 cm)
Tuning steps:1 MHz (DIP-switches)
Frequency stability:? ppm
Video mode:FM
Audio mode:FM, 5.0-6.5 MHz subcarrier
Power supply:9-12 VDC
Current drain / power consumption:? mA
Antenna impedance / connector:50 ohm / SMA
Dimensions (W*H*D):104*34*105 mm (4.1*1.34*4.13")
Weight:? g (? oz)
Other features:




TRANSMITTER SECTION
RF output power:9 mW 10%
Modulation system:
Max FM deviation (Factory set): Audio: ? KHz
Video: ? MHz
Spurious emissions:
Input impedance / connector: Audio: ? ohm / 8-pin modular (Wired for Icom standard)
Video: 75 ohm / BNC




MISCELLANEOUS
Manufactured:Germany, 2018-202x
Additional info: New price march 2022: 325.00 Euro
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
An inside picture of DF9CR 3cm FM-ATV-TX

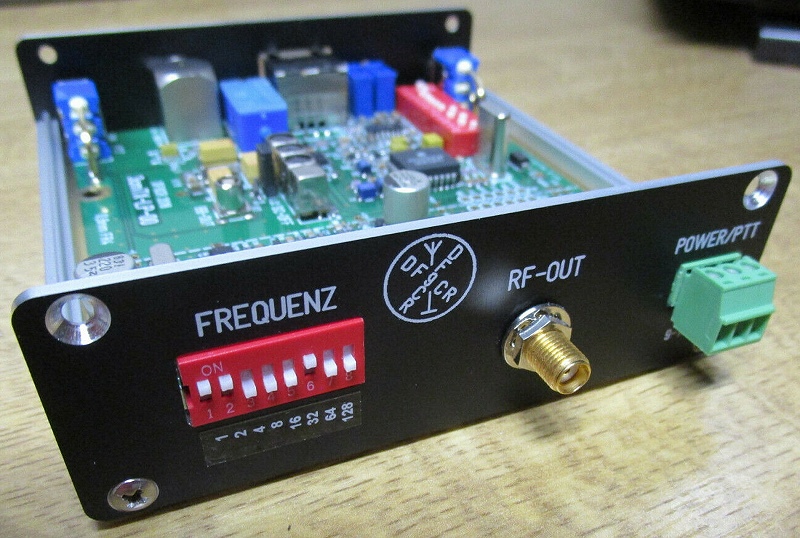

A rear picture of DF9CR 3cm FM-ATV-TX
