| GENERAL |

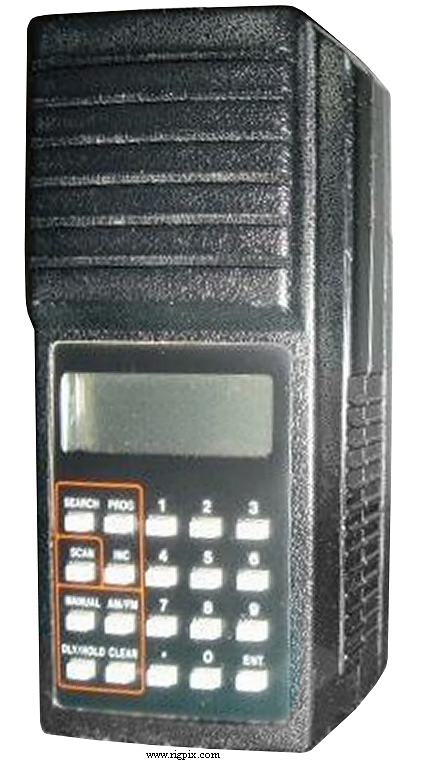

| Type: | VHF/UHF receiver/scanner |
| Frequency range: |
75-105 / 118-136 / 140-174 / 406-495 / 830-950 MHz
|
| Tuning steps: | 5 / 10 / 12.5 KHz
(25 KHz on the 900 MHz band but with 12.5 KHz offset) |
| Frequency stability: | ? ppm |
| Mode: | AM / FM |
| Channels / memory management: |
20 regular
1 search band
|
| Power supply: | ? VDC |
| Current drain / power consumption: | Max 120 mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 61*130*44 mm (2.4*5.12*1.73") |
| Weight: | 540 g (1.19 lb) |
| Other features: | Backlit display. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 80 mW at ?% distortion / 8 ohm |
| External speaker connector: | 2.5 mm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: |
Quick reference (82 KB)
Bulletin (104 KB)
FM-IF: MC3361
|
| Modifications and fixes: | |
| Reviews: | Ham Radio Today: September 1988, page 52 |
| Options / Accessories: |
|
