| GENERAL |
| System: | NMT450 (Sweden and other Nordic countries) |
| Frequency range: | RX: 463.000-467.500 MHz
TX: 453.000-457.500 MHz |
| Frequency stability: | ? ppm |
| Power supply: | 12 VDC (SLA battery pack)
or 10.8-15.6 VDC external |
| Current drain / battery life: | Standby: Less than 800 mA / ? hrs
Talk: Less than 7.5 A / ? min @ 15 W output power |
| Impedance / antenna: | 50 ohm / ?-jack |
| Dimensions (W*H*D): | ? mm (?"), with battery pack |
| Weight: | ? Kg (? lb), with battery pack |
| Other: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.4 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 1 uV EMF (20 dB SINAD) |
| Selectivity: | 80 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / impedance: | 10 W at 3% distortion / ? ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 15 W
Mid: 1.5 W
Low: 150 mW
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Less than 0.2 uW |
| Handset impedance / connector: | ? ohm / ?-pin |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 198x-198x (Discontinued) |
| Additional info: |

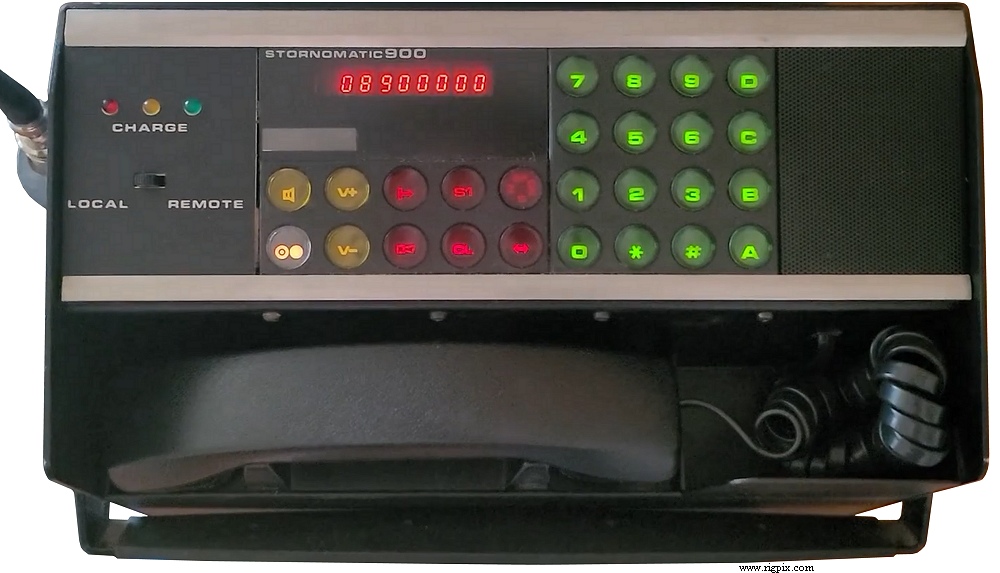

This is the portable version of the original Stornomatic 900.
They are electrically identical except for the portable add-ons.
|
| Related documents: | |
| Modifications and fixes: | |
| Options / Accessories: |
|
