| GENERAL |

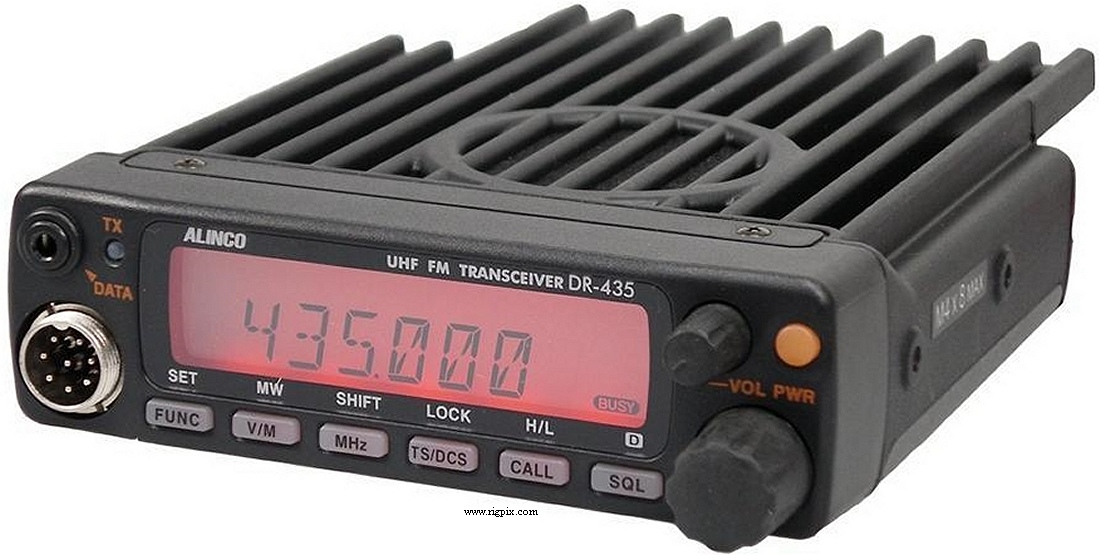

| Type: | Amateur UHF transceiver |
| Frequency range: |
Europe
TX: 430-440 MHz
RX: 350-512 MHz
NB! The extended RX frequency range
may require modification
|
| Tuning steps: | 5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability: | ±5 ppm (No temperature reference) |
| Mode: | FM / NFM |
| Channels / memory management: |
100 regular with alpha tags
1 call
1 scan edge pair (Program scan)
10 DTMF autodial
Non-volatile EEPROM storage
|
| Repeater shift / offset: | ±0 to 99.995 MHz |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 400-600 mA
TX: Max 10 A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 142*40*174 mm (5.51*1.58*6.85") |
| Weight: | 1.0 Kg (2.2 lb) |
| Other features: |
CTCSS/PL and DCS with tone scan. GPS input for APRS. TNC option (EJ-41U).
1000 / 1450 / 1750 / 2100 Hz tone call. Theft alarm. Dimmer. Cloning.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.85 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Selectivity: |
FM
12 KHz (-6 dB)
28 KHz (-60 dB)
NFM
6 KHz (-6 dB)
14 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 70 cm: | 35 W | 10 W | 5 W |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2000-2002 (Discontinued) |
| Additional info: | |
| Related documents: |
Service manual (5.2 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
EDC-36
EDC-37
EDC-43
EJ-41U
EMS-53
EMS-56
|
Cigarette plug cable with filter
DC cable
Cigarette plug cable
TNC unit
Hand microphone
Hand microphone with DTMF keypad
|
|
