SSB Electronics MV-432S

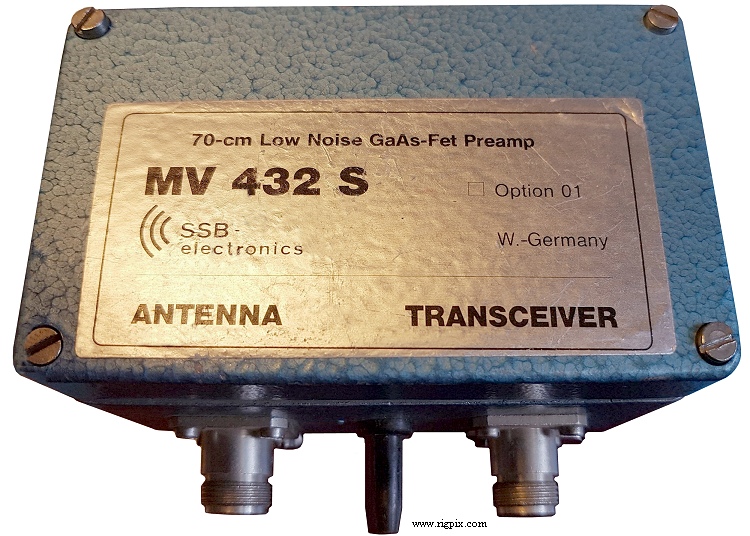

A picture of SSB Electronics MV-432S
Type:Amateur UHF switched masthead preamplifier
Band/frequency range:70 cm
Gain:15-25 dB (adjustable)
Noise factor:
Max feed through RF power:50 W (VOX mode)
500 W (PTT/sequencer mode)
Impedance/connectors:50 ohms / 2*N-jacks
Mast diameter:
Power supply:12 VDC
Current drain/power consumption:? mA
Dimensions (W*H*D):125*80*56 mm (4.92*3.15*2.2")
Weight:780 g (27.51 oz)
Manufactured:West Germany, 198x-198x (Discontinued)
Other:Recommended sequencer: DCW-15
Related documents:GaAs FET: MGF1302
Modifications:
Reviews:
An inside picture of SSB Electronics MV-432S
