LDG Electronics Z-100

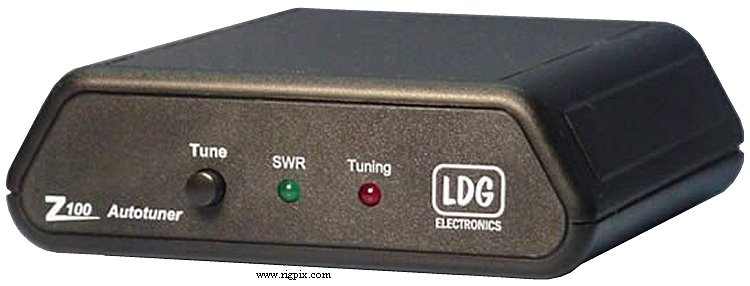

A picture of LDG Electronics Z-100


Type:Automatic antenna tuner
Frequency range / Bands:1.8-54 MHz
Max feed through RF power:HF: Max 125 W
6 m: Max 50 W
Impedance range / connectors:6-800 ohm / SO-239
Power supply:7-18 VDC
Current drain / power consumption:Max 300 mA
Dimensions (W*H*D):140*38*135 mm (5.51*1.5*5.32")
Weight:400 g (14.1 oz)
Manufactured:USA, 200x-200x (Discontinued)
Additional info: 200 memories.
New price 2006 in Sweden: SEK 2100:-
Related documents:
Modifications and fixes:
Applicable radios:
