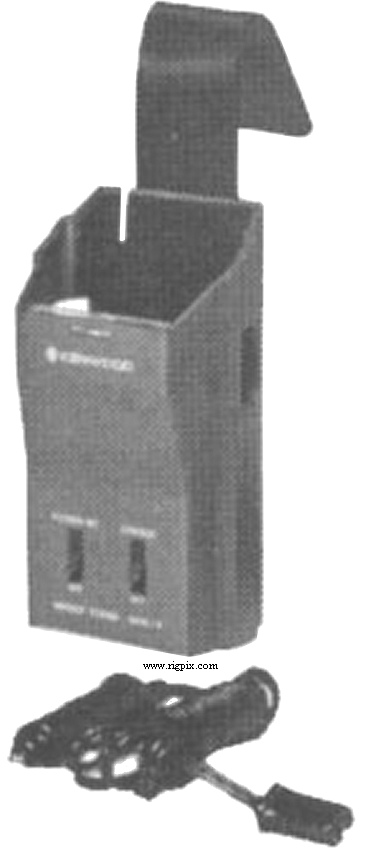

| Type: | Drop-in mobile stand with power feed and trickle charge |
| Power supply / input voltage: | 13.8 VDC ±15% (Male 2-pin jack) |
| Current drain / power consumption: | ? A |
| Output voltage: | 9 VDC |
| Output current: | 800 mA (Transceiver supply)
45 mA (NiCd charging current) |
| Dimensions (W*H*D): | 79*180*53 mm (3.11*7.09*2.09") |
| Weight: | 350 g (12.4 oz) |
| Manufactured: | Japan, 1981-198x (Discontinued) |
| Other: | Transceiver keyboard illumination lamp. |
| Related documents: | User manual (159 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Applicable battery packs or radios: |
PB-25
PB-25H
TR-2500
TR-3500
|
