| GENERAL |

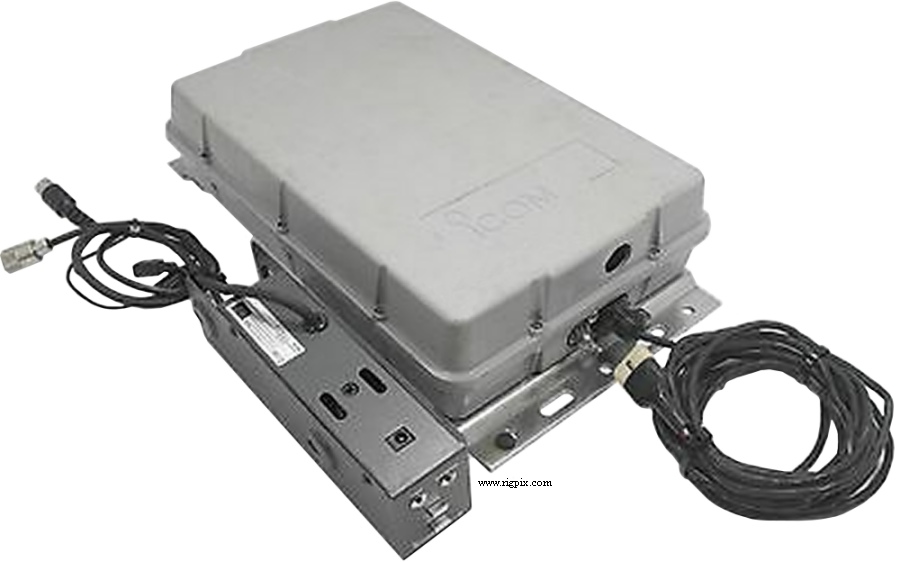

| Type: | Automatic antenna tuner |
| Frequency range: | 10-80 m / 3.5-30 MHz (With AH-2b)
10-160 m / 1.8-30 MHz (When antenna length is 12 m (39.4 ft) or longer) |
| Max feed through RF power: | 120 W |
| Impedance range / connectors: | ?-? ohm / SO-239 |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | Max 2 A |
| Dimensions (W*H*D): |
Control unit: 53*63*205 mm (2.09*2.48*8.07")
Tuner unit: 230*85*380 mm (9.06*3.35*14.96")
|
| Weight: |
Control unit: 700 g (1.54 lb)
Tuner unit: 2.4 Kg (5.29 lb)
|
| Manufactured: | Japan, 1987-19xx (Discontinued) |
| Additional info: |
AH-2b antenna element and 160 m extension options.
New price 1987 in the US: $495 (AH-2 only)
New price 1987 in the US: $625 (With AH-2b antenna element)
|
| Related documents: | User manual (3.8 MB) |
| Modifications and fixes: | |
| Reviews: | QST: April 1987 |
| Applicable radios: |
IC-720A
IC-735
IC-740
IC-745
IC-751
And possibly other compatible transceivers...
|
