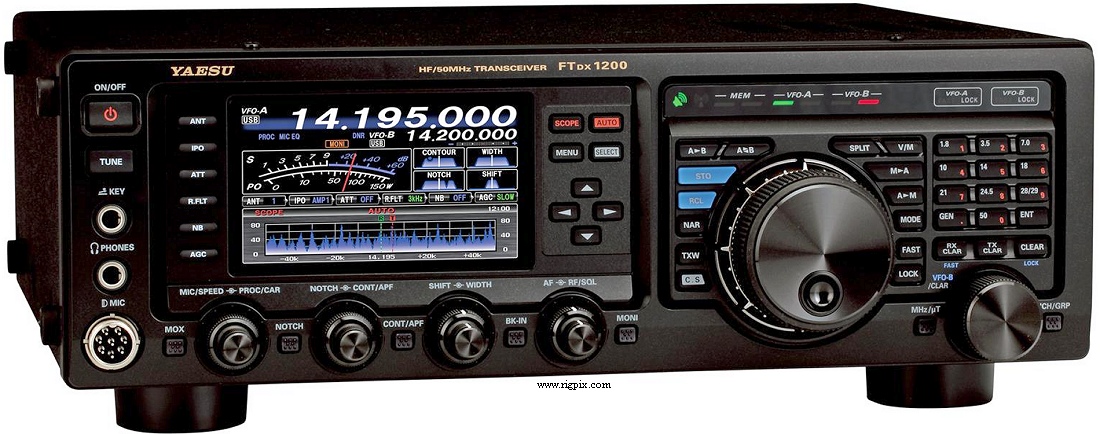

| GENERAL |
| Type: | Amateur HF/VHF transceiver |
| Frequency range: |
TX: 10-160 m + WARC / 6 m
RX: 0.03-56 MHz
|
| Tuning steps: | 1 / 5 / 10 / 100 Hz |
| Frequency stability: | ±0.5 ppm @ -10 to +50°C (14 to 122°F), after 1 minute warmup |
| Mode: | AM / FM / NFM / SSB / CW / RTTY / Packet |
| Channels / memory management: |
99 regular with alpha tags (18 characters)
5 QMB
9 scan edge pairs (PMS)
Non-volatile EEPROM storage
|
| Repeater shift / offset: |
10 m: 0-1 MHz in 50 KHz steps
6 m: 0-4 MHz in 10 KHz steps
|
| Power supply: | 13.8 VDC ±10% |
| Current drain / power consumption: | RX: Max 2.1 A
TX: Max 23 A |

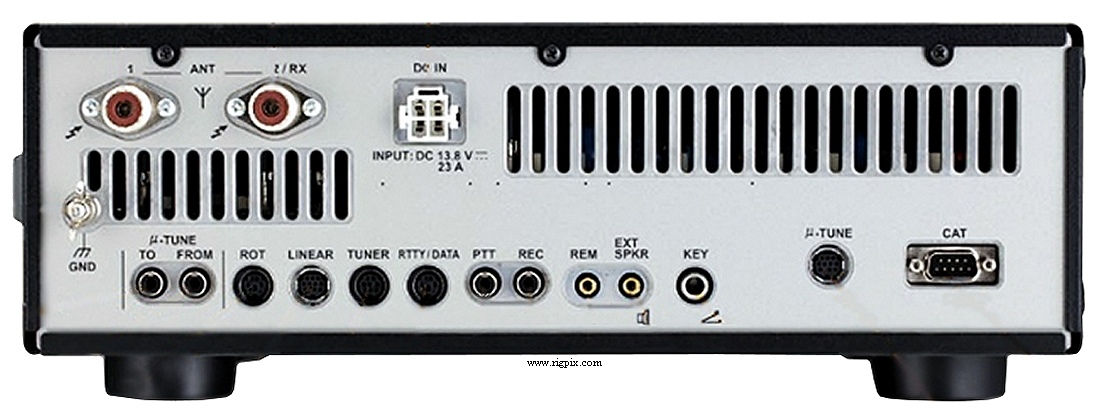

| Antenna impedance / connector: | 50-100 ohm / Two SO-239
(16.7-150 ohm HF and 25-100 ohm 6 m with ATU on) |
| Dimensions (W*H*D): | 365*115*312 mm (14.4*4.5*12.3") |
| Weight: | 9.5 Kg (20.9 lb) |
| Other features: |
4.3" full color TFT. Spectrum scope. 32-bit high speed IF DSP.
Rotator interface. CAT control. CTCSS/PL. Built-in automatic antenna tuner
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 40.455 MHz
2nd IF: 455 KHz
3rd IF: 30 KHz (24 KHz for AM/FM)
|
| Sensitivity: |
AM (BW: 6 KHz, 10 dB S+N/N)
0.5-30 MHz: 2 uV (Pre-amp 2)
50-54 MHz: 1 uV (Pre-amp 2)
FM (BW: 15 KHz, 12 dB SINAD)
28-30 MHz: 0.5 uV (Pre-amp 2)
50-54 MHz: 0.35 uV (Pre-amp 2)
SSB (BW: 2.4 KHz, 10 dB S+N/N)
1.8-30 MHz: 0.16 uV (Pre-amp 2)
50-54 MHz: 0.125 uV (Pre-amp 2)
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: |
AM:
6 KHz (-6 dB)
15 KHz (-60 dB)
FM:
12 KHz (-6 dB)
30 KHz (-60 dB)
SSB:
2.4 KHz (-6 dB)
3.6 KHz (-60 dB)
CW/RTTY/PKT:
500 Hz (-6 dB)
750 Hz (-60 dB)
|
| Image rejection: | 10-160 m: >70 dB
6 m: >60 dB |
| AF output power / speaker: | 2.5 W at 10% distortion / 4 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| HF | 6 m |
|---|
| AM: | 2-25 W | 2-25 W |
| FM: | 5-100 W | 5-100 W |
| SSB (PEP): | 5-100 W | 5-100 W |
| CW: | 5-100 W | 5-100 W |
|
| Modulation system: |
AM: Low-level (Early stage)
FM: Variable reactance
SSB: Balanced
|
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | 10-160 m: Better than -60 dB
6 m: Better than -63 dB |
| Microphone impedance / connector: | 200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2013-20xx (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (26.4 MB)
DSP: TMS320C6727B
Two RD100HHF1 MOSFET finals
|
| Modifications and fixes: | |
| Reviews: | Popular Communications: September 2013, page 43 |
| Options / Accessories: |
CT-39A
CT-118
DVS-6
FC-40
FFT-1
FH-2
FP-1023A
FP-1030A
MD-100A8X
MD-200A8X
MH-31B8
SCU-17
YH-77STA
|
Packet interface cable
Linear amplifier connection cable (for VL-1000)
Voice memory unit
External automatic antenna tuner
FFT unit
Remote control keypad
External power supply, 23 A
External power supply, 25 A
Desk microphone
Ultra high fidelity desk microphone
Hand microphone
USB interface unit
Stereo headphones
|
|
