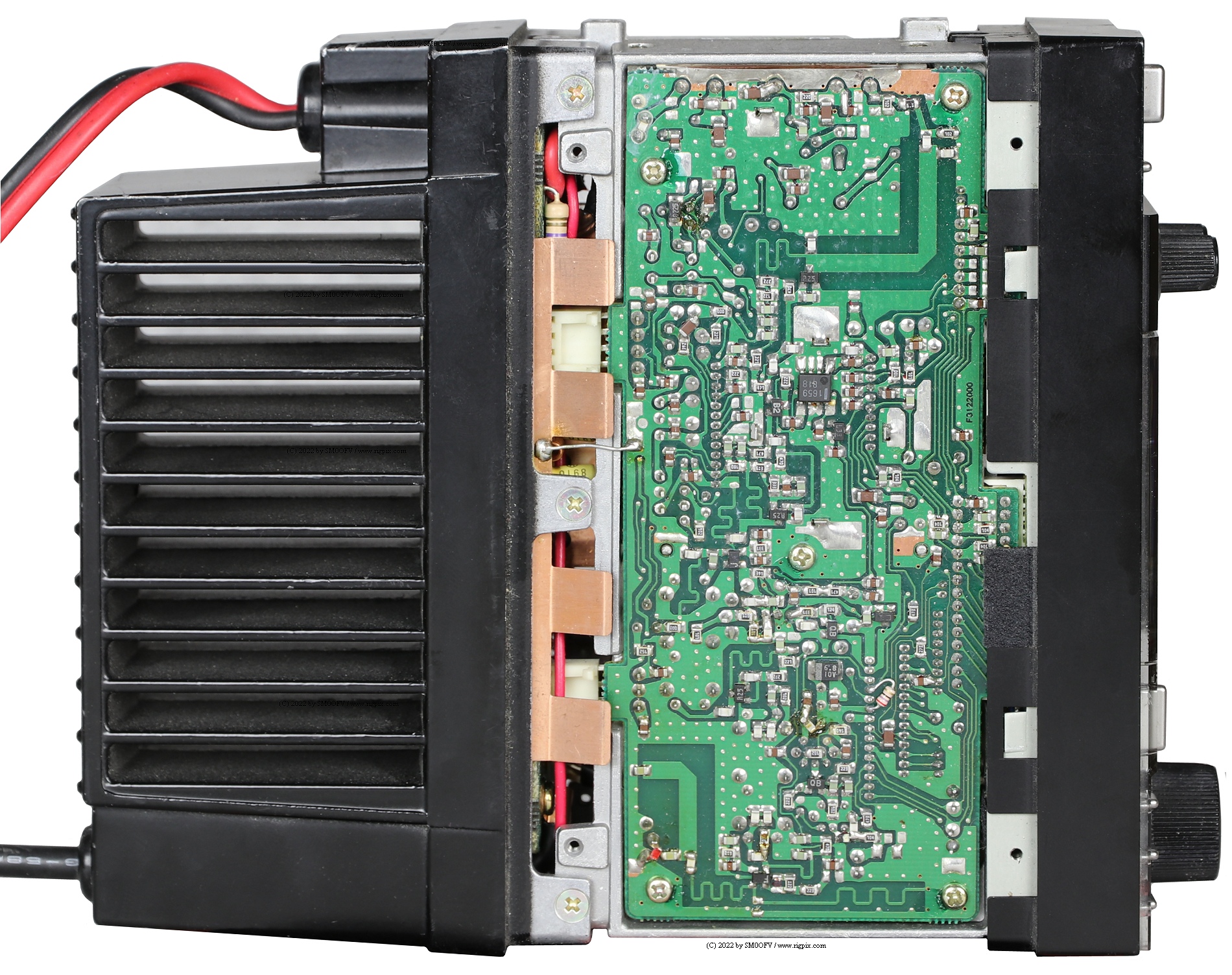

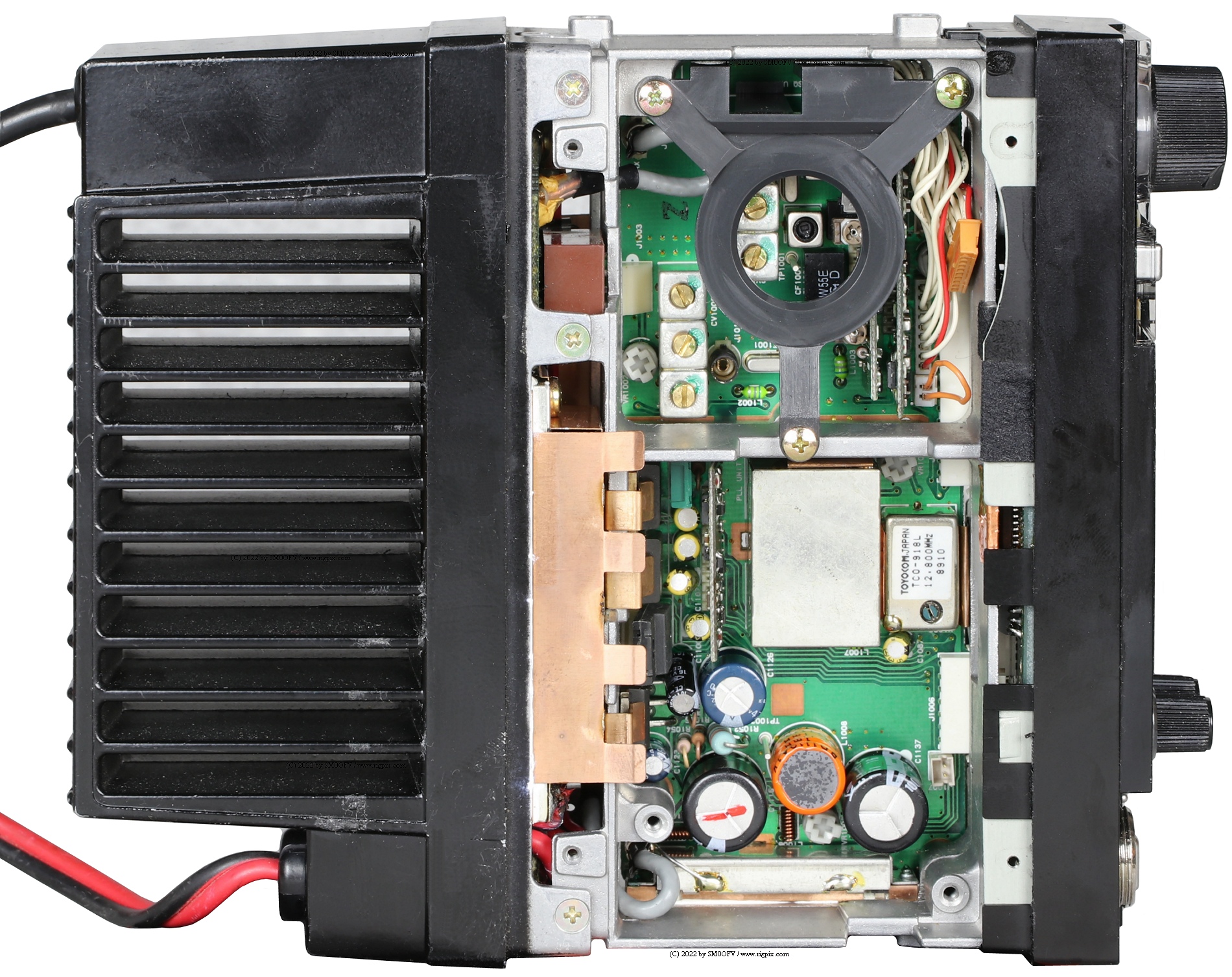

| GENERAL |

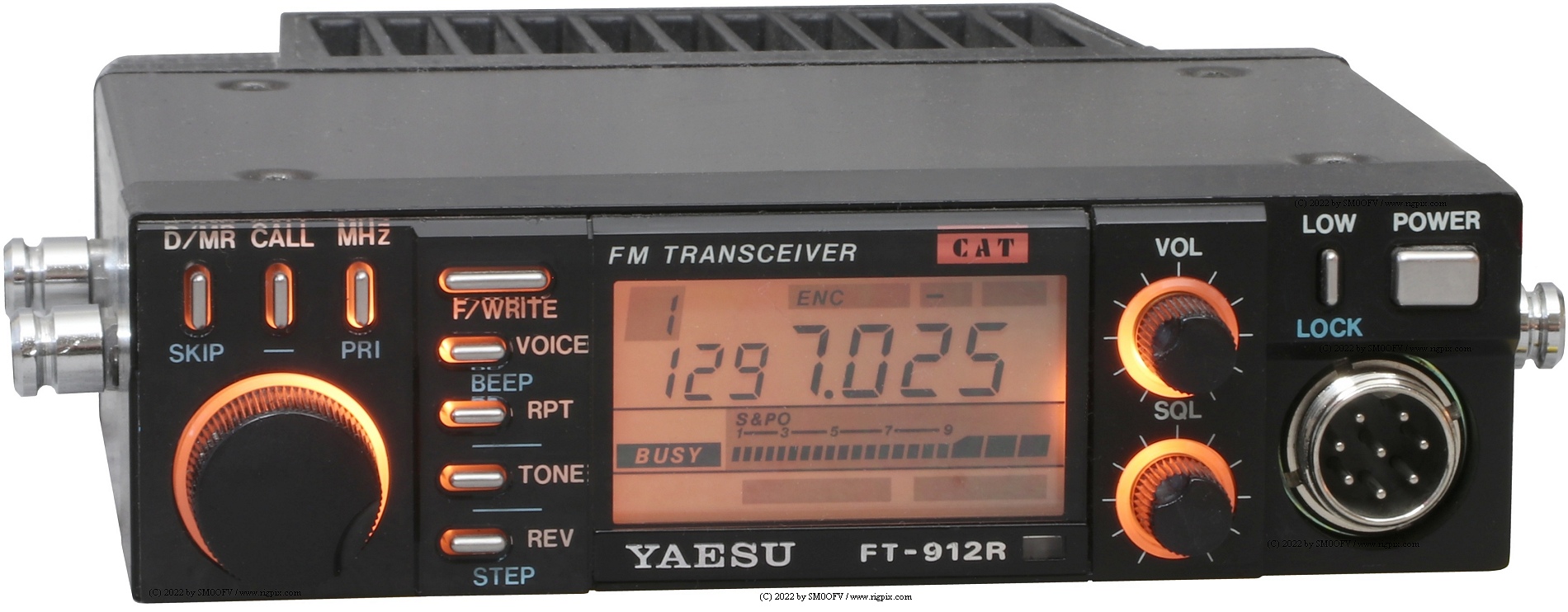

| Type: | Amateur UHF transceiver |
| Frequency range: |
TX: 1240-1300 MHz
RX: 1240-1300 MHz
|
| Tuning steps: | 10 / 12.5 / 20 / 25 KHz |
| Frequency stability: | ±1.5 ppm @ -5 to +50°C (23 to 122°F) |
| Mode: | FM |
| Channels / memory management: |
18 regular
1 call
1 scan edge pair (PMS)
Priority function
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±0 to 99.95 MHz in 50 KHz steps |
| Power supply: | 13.8 VDC ±10% |
| Current drain / power consumption: | RX: 300 to 660 mA
TX: Max 5 A |

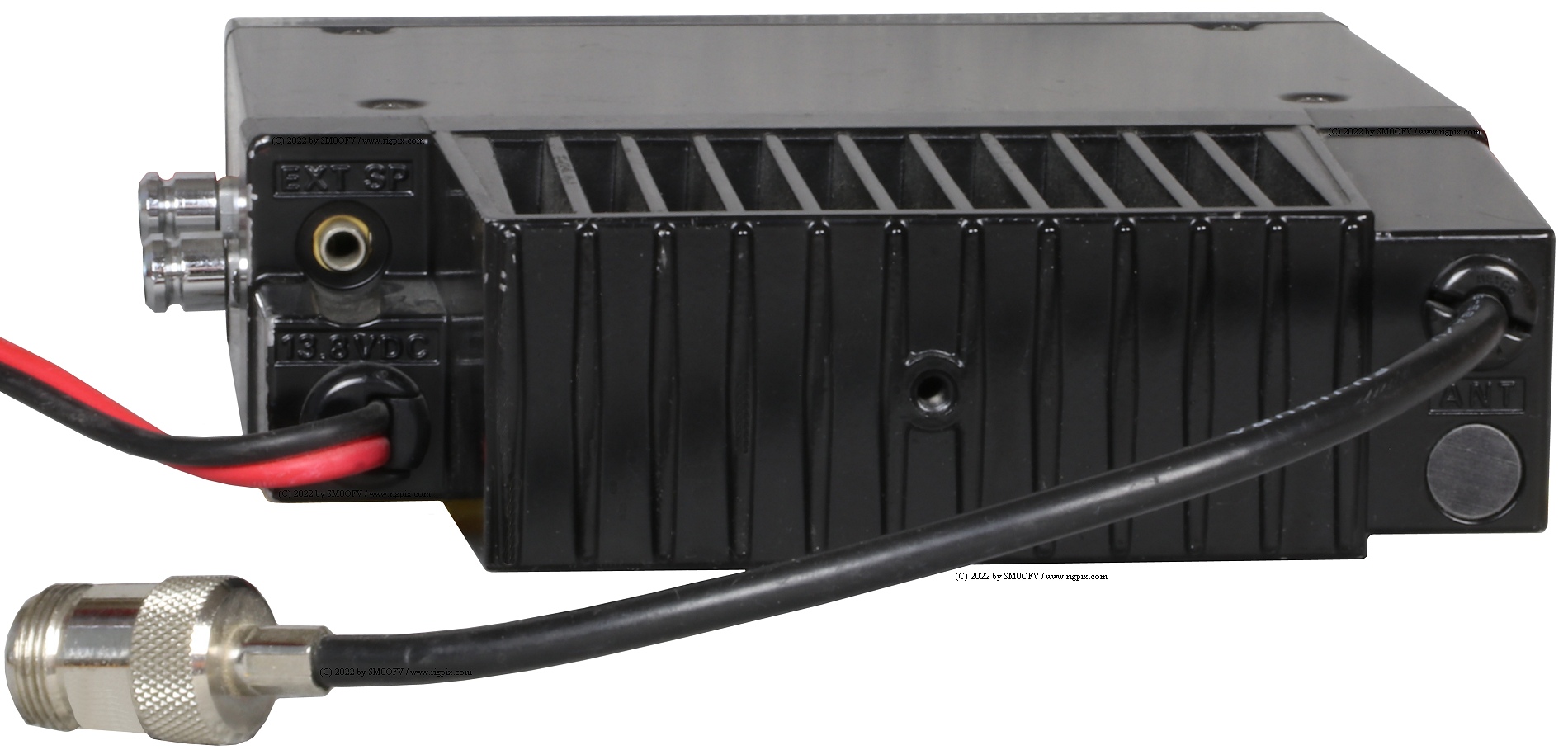

| Antenna impedance / connector: | 50 ohm / N-jack (On pigtail) |
| Dimensions (W*H*D): | 140*40*160 mm (5.51*1.58*6.3") |
| Weight: | 1.25 Kg (2.76 lb) |
| Other features: |
CTCSS/PL-encoder. 1750 Hz repeater tone (Europe). Auto-dimmer.
CAT computer control. Memory cloning.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 58.3 MHz
2nd IF: 455 KHz - Ceramic filter: W55E (CDBW455E)
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | 12 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | >50 dB |
| AF output power / speaker: | 1.5 W at 5% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -50 dBc |
| Microphone impedance / connector: | 2 Kohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1990-199x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual and schematic diagram (4.5 MB)
RF driver module: M67732
RF power module: M67711
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
DVS-1
FTS-12
MF-1A3B
MH-14A8
MH-14B8
MH-14D8
MH-15C8
MH-15D8
MMB-37
SB-10
SP-55
YH-1
|
Digital voice memory unit
Tone squelch unit
Boom microphone with flexible arm
Speaker-microphone with 1750 Hz tone call
Speaker-microphone
Standard hand microphone
Speaker-microphone with DTMF keypad
Hand microphone with DTMF autodialler memory
Mobile mounting bracket (As supplied)
PTT switch unit for MF-1a3b or YH-1
External speaker
Headset with microphone
|
|
