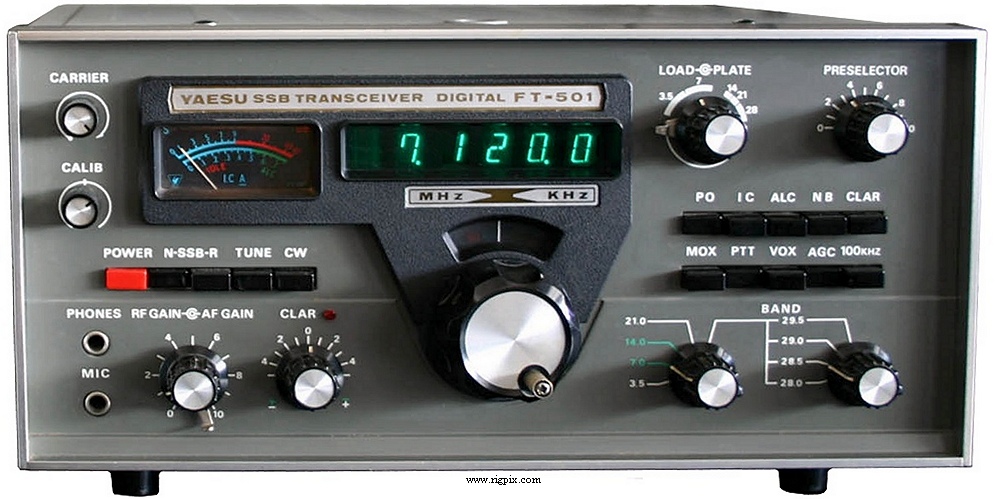

| GENERAL |
| Type: | Amateur HF transceiver |
| Frequency range: |
10-80 m in 8 bands
3.5-4.0 MHz
7.0-7.5 MHz
14.0-14.5 MHz
21.0-21.5 MHz
28.0-28.5 MHz (Optional)
28.5-29.0 MHz
29.0-29.5 MHz (Optional)
29.5-30.0 MHz (Optional)
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | Less than 100 Hz in any 30 minute period after warmup |
| Mode: | SSB / CW |
| Channels / memory management: |
None
|
| Repeater shift / offset: | No |
| Power supply: | Mains: 110 / 240 VAC (Separate FP-501 power supply) |
| Current drain / power consumption: | RX: Max 140 VA
TX: Max 650 VA |
| Antenna impedance / connector: | 50-75 ohm / SO-239 |
| Dimensions (W*H*D): | 350*160*292 mm (13.8*6.3*11.5") |
| Weight: | 10 Kg (22.05 lb) |
| Other features: | NB. 100 KHz calibrator. VOX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
1st IF: 9 MHz
|
| Sensitivity: | 0.3 uV (10 dB S/N) |
| Selectivity: |
SSB
2.4 KHz (-6 dB)
3.8 KHz (-60 dB)
CW (With optional narrow filter)
600 Hz (-6 dB)
1.2 KHz (-60 dB)
|
| Image rejection: | 50 dB |
| AF output power / speaker: | 3 W at 10% distortion / 4 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Max pwr |
|---|
| SSB (PEP): | ~300 W (500 W input) |
| CW: | ~200 W (400 W input) |
NB! The output power is slightly lower on 10 m
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -40 dB |
| Microphone impedance / connector: | Hi-Z / 3-pin (3.5 mm / ¼") |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1975-197x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (570 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
FP-501
?
|
Power supply with built-in speaker
Narrow CW filter
|
|
