| GENERAL |

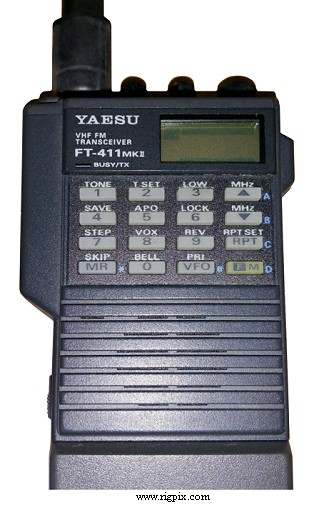

| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 140-174 MHz
USA
TX: 144-148 MHz
RX: 140-174 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 20 / 25 KHz |
| Frequency stability: | Better than ±10 ppm (No tempearature reference) |
| Mode: | FM |
| Channels / memory management: |
46 regular
1 call
1 scan edge pair (PMS)
Priority function
10 DTMF
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±600 KHz (Default, programmable) |
| Power supply: | 5.5-15 VDC |
| Current drain / power consumption: | RX: 7-150 mA
TX: Max 1.3 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 55*188*32 mm (2.16*7.4*1.26"), with FNB-11H |
| Weight: | 550 g (19.4 oz), with FNB-11H |
| Other features: |
ARS. VOX. DTMF. Backlit display. 1750 Hz repeater tone (Europe).
Data cloning. CTCSS/PL option.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / 8 ohm (@ 12 VDC) |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
NB! The high output level depends on battery pack/voltage
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin (2.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1999-200x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (330 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CA-7
FBA-17
FNB-11H
FNB-12
FNB-14
FNB-17
FTS-17A
MH-32A2B
MH-34C2B
MH-37B2B
MMB-32A
NC-29
NC-34B
NC-34C
NC-50
NC-65B
NC-65C
NC-65F
NC-65U
PA-6
YHA-16
|
Charger sleeve (Required with NC-50)
Battery case. For six LR6 / AA batteries
NiCd battery pack. 12 V, 700 mAh
NiCd battery pack. 12 V, 500 mAh
NiCd battery pack. 7.2 V, 1000 mAh
NiCd battery pack. 7.2 V, 600 mAh
CTCSS/PL unit
Speaker-microphone
Speaker-microphone
Earpiece-microphone
Mobile hanger bracket
Desktop quick charger (5-hour) for all above FNB packs
Compact wall charger (117 VAC). For FNB-14
Compact wall charger (220-234 VAC). For FNB-14
Dual slot rapid charger
Compact wall charger (117 VAC). USA
Compact wall charger (220-234 VAC). Europe
Compact wall charger (220 VAC). Argentinian plug
Compact wall charger (220-234 VAC). UK plug
Mobile DC adapter/charger for 7.2 V packs
Rubber flex antenna
|
|
