WiNRADiO WR-3100e

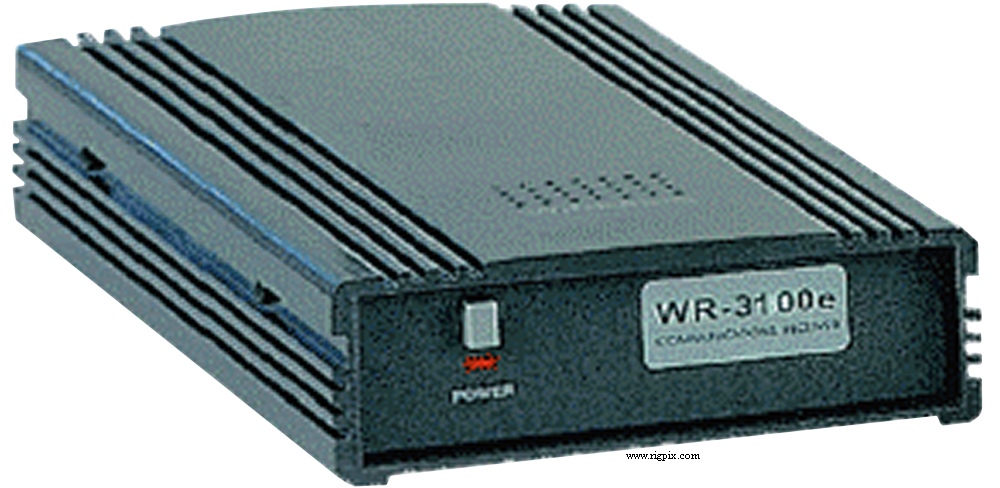

A picture of WiNRADiO WR-3100e

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range: 0.15-1500 MHz
(Cellular blocked in the US)
Tuning steps:? KHz
Frequency stability:10 ppm @ 0 to 60°C (32 to 140°F)
Mode:AM / FM / WFM / SSB / CW
NB! No WFM below 30 MHz
Channels / memory management: Virtually unlimited
AM/SSB: 10 channels per second
FM/WFM: 50 channels per second
Power supply:12 VDC
Current drain / power consumption:? mA
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:RS-232C.




RECEIVER SECTION
Receiver system: Triple conversion superheterodyne

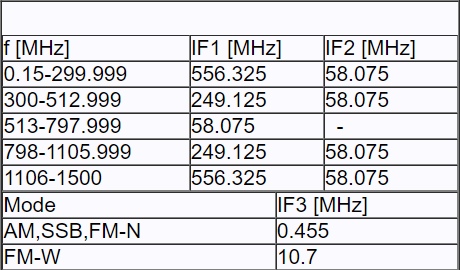

IF matrix
Sensitivity: AM (10 dB S/N)
0.5-1.5 MHz: 5 uV
1.5-30 MHz: 1 uV
30-1000 MHz: 1 uV
1000-1500 MHz: 1.5 uV
FM (12 dB SINAD)
0.5-1.5 MHz: 0.9 uV
1.5-30 MHz: 0.35 uV
30-1000 MHz: 0.35 uV
1000-1500 MHz: 0.4 uV
WFM (12 dB SINAD)
30-1000 MHz: 1 uV
1000-1500 MHz: 2 uV
SSB/CW (10 dB S/N)
0.5-1.5 MHz: 0.9 uV
1.5-30 MHz: 0.3 uV
30-1000 MHz: 0.3 uV
1000-1500 MHz: 0.35 uV
Selectivity: AM
6 KHz (-6 dB)
FM
17 KHz (-6 dB)
WFM
230 KHz (-6 dB)
SSB/CW
2.5 KHz (-6 dB)
Image rejection:0.15-513 MHz: 65 dB
798-1500 MHz: 60 dB
AF output power / speaker:200 mW at ?% distortion / 8 ohm
External speaker connector:3.5 mm




MISCELLANEOUS
Manufactured:1998-2003 (Discontinued)
Additional info: External unit
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
-
-
Digital suite
Trunking option
