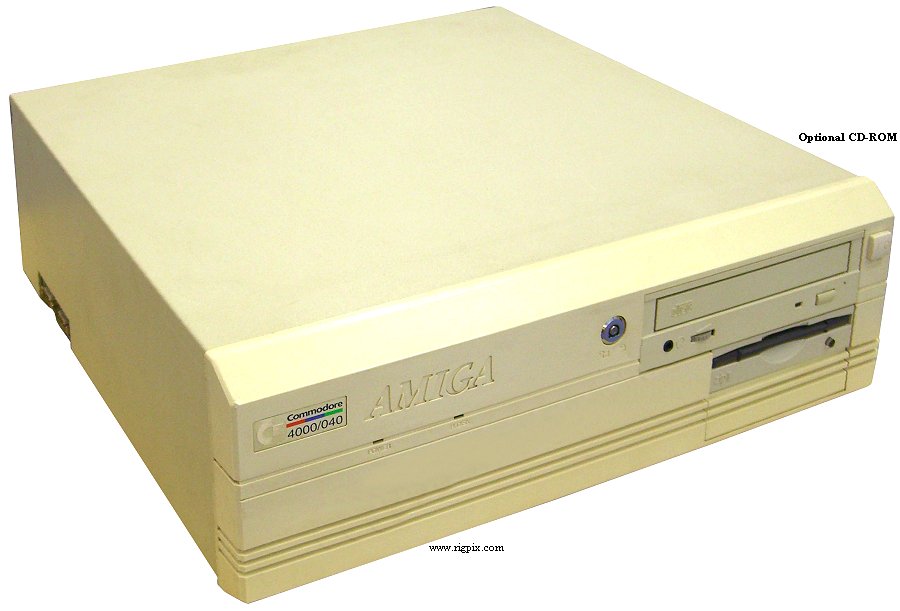

Commodore Amiga 4000/040

SPECIFICATIONS
Type:32-bit home/high-end computer
CPU:Motorola MC68040 @ 25 MHz
Operating system:AmigaOS 3.0 and Workbench 3.0
Memory:ROM: 512 KB. Kickstart 3.0
RAM: 2 MB (expandable up to 18 MB on-board)
Sound:Four hardware-mixed channels (two left and two right)
8-bit PCM @ sampling frequency 28-56 KHz
Graphics:PAL:
320*256 to 1280*512i pixels, 256 or 262144 colors
640*480 pixels (VGA), 256 or 262144 colors
800*600 pixels, 256 or 262144 colors
1024*768 pixels, 256 or 262144 colors
Palette: 16.8 million colors
NTSC:
320*200 to 1280*400i pixels, 256 or 262144 colors
640*480 pixels (VGA), 256 or 262144 colors
800*600 pixels, 256 or 262144 colors
1024*768 pixels, 256 or 262144 colors
Palette: 16.8 million colors
Storage:Integrated 3.5" HD floppy
Internal IDE hard drive
Input:External keyboard
Mouse
Connectivity:Analog RGB out
Stereo audio out
2*game/mouse ports
RS-232C
Printer/Centronics parallel
Floppy drive port
4*32-bit Zorro III slots
3*16-bit ISA slots (Optional)
Voltage:Mains
Power consumption:
Dimensions (W*H*D):380*125*395 mm
Weight:? Kg (? lbs)
Manufactured:1992-1994 (Discontinued)
Other:Battery backed real-time clock

Custom chips:
Alice - AGA display controller
Bridgette - Complex buffer
Fat Gary - System address decoder
Lisa - AGA display encoder
Paula - Audio and I/O controller
Ramsey - RAM controller
Super Buster - DMA arbitrary controller
