Ten-Tec Orion II (566)

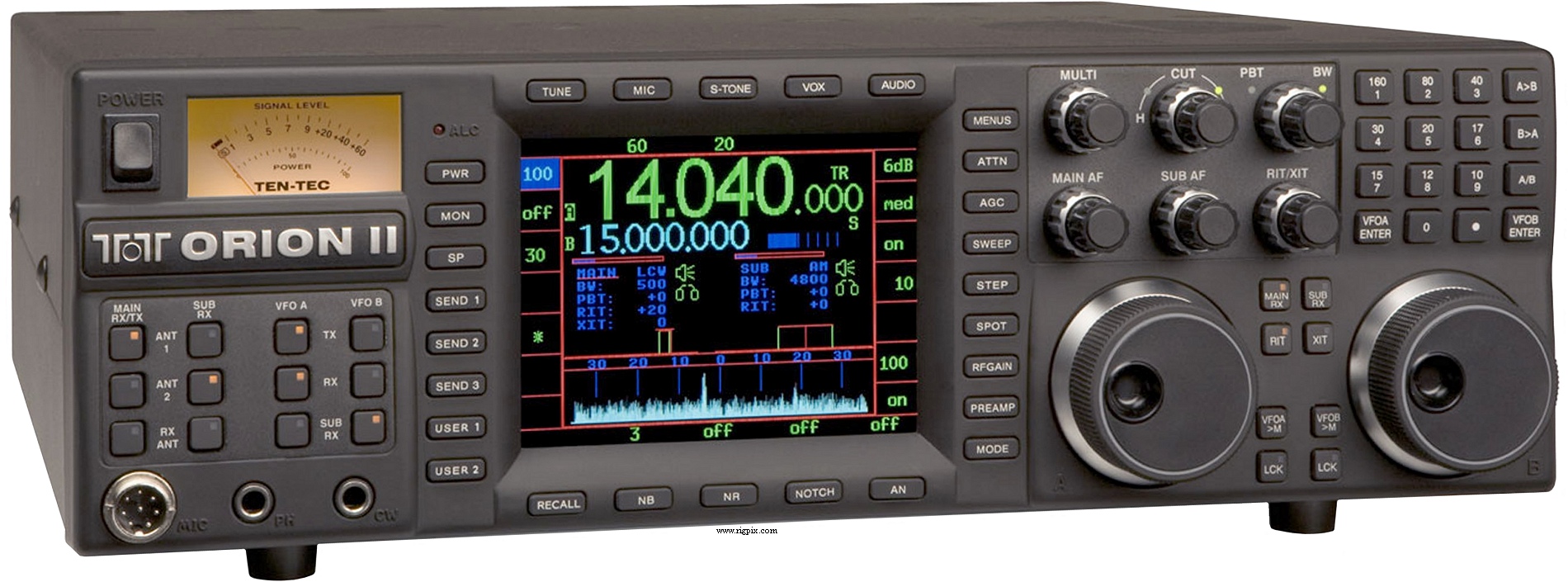

A picture of Ten-Tec Orion II (566)

SPECIFICATIONS

GENERAL
Type:Amateur HF transceiver
Frequency range: TX: 10-160 m + WARC and 60 m (5 MHz)
RX: 0.1-30 MHz
Tuning steps:? KHz
Frequency stability:±? ppm
Mode:AM / FM / SSB / CW / AFSK
Channels / memory management:
Repeater shift / offset:
Power supply:13.8 VDC
Current drain / power consumption:RX: ? mA
TX: Max ? A
Antenna impedance / connector:50 ohm / Two SO-239
50 ohm / Phono (RCA) for RX only
Dimensions (W*H*D):432*133*476 mm (17.01*5.24*18.74")
Weight:9.2 Kg (20.28 lb)
Other features: Dual 32-bit IF-DSP. True diversity reception capability with twin RX.
Real-time spectrum display. Built-in keyer. Flash-ROM BIOS.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:

Pwr
AM:5-100 W
FM:5-100 W
SSB (PEP):5-100 W
CW:5-100 W
Modulation system:
Max FM deviation (Factory set):±? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 8-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:USA, 2005-20xx
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
