Standard C-6500

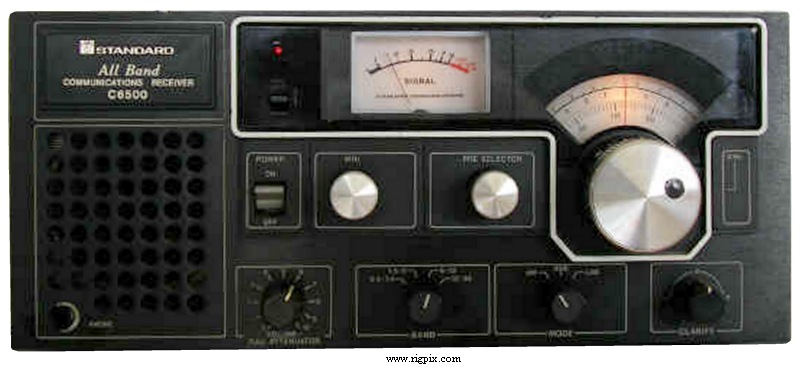

A picture of Standard C-6500

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range: 0.5-30 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / SSB / CW
Channels / memory management: ? regular
Power supply:Mains or 12 VDC
Current drain / power consumption:? mA @ 12 VDC
Antenna impedance / connector:50 ohm / ?
Built-in telescopic whip
Dimensions (W*H*D):340*156*290 mm (13.39*6.14*11.42")
Weight:6.4 Kg (14.11 lb)
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity: AM (No reference)
0.5-1.5 MHz: 5 uV
1.5-30 MHz: <1 uV
SSB (No reference)
0.5-1.5 MHz: 1 uV
1.5-30 MHz: 0.5 uV
Selectivity: AM
7 KHz (-6 dB)
13 KHz (-30 dB)
SSB
4 KHz (-6 dB)
8 KHz (-30 dB)
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Japan, 1978-19xx (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
