Sangean ATS-818

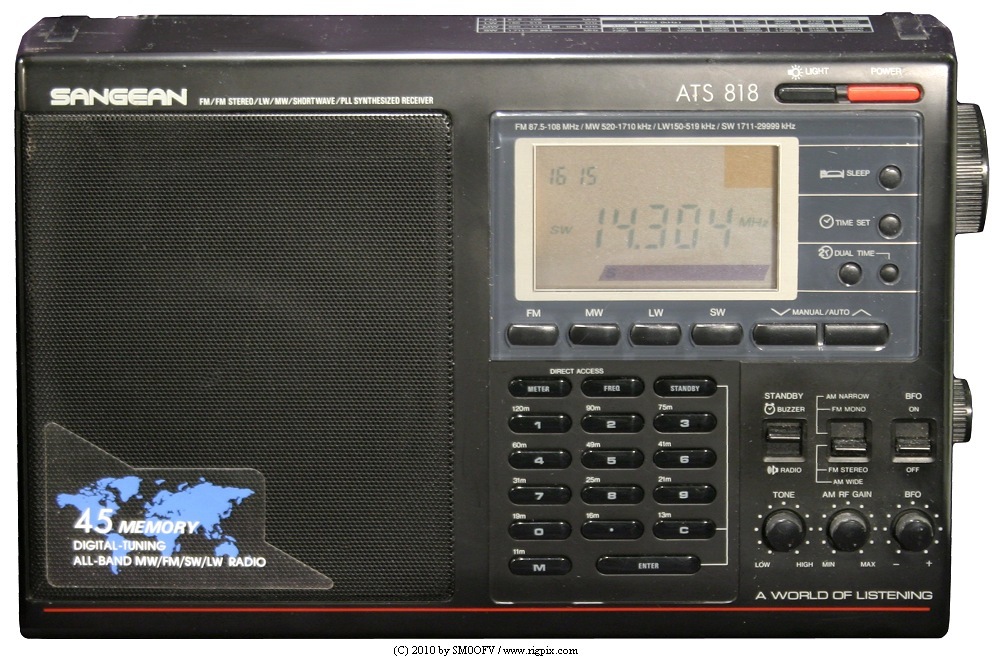

A picture of Sangean ATS-818

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range: 0.15-30 / 88-108 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM / SSB / CW / WFM (Stereo with headphones)
Channels / memory management: 45 regular
RAM storage with three LR6 / AA battery backup
Power supply:6 VDC (Four LR20 / D batteries)
or 6 VDC external
Current drain / power consumption:60-120 mA
Antenna impedance / connector:- / Telescopic whip and ferrite bar
Dimensions (W*H*D):296*192*68 mm (11.65*7.56*2.68")
Weight:1.9 Kg (4.19 lb), without batteries
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:1993-1995 (Discontinued)
Additional info: Also sold in North America as RadioShack DX-390
Related documents:User manual (4.5 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -

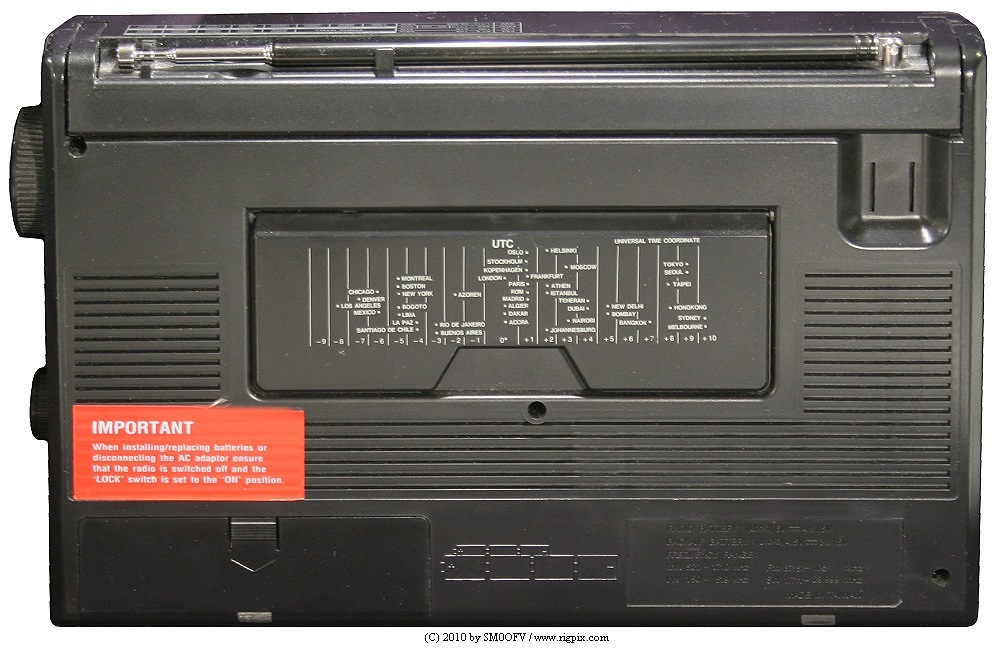

A rear picture of Sangean ATS-818
