Sangean ATS-606A

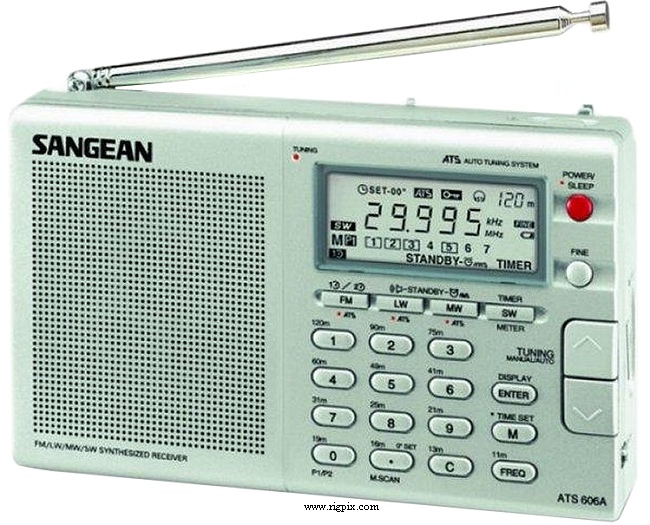

A picture of Sangean ATS-606A

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range: 0.153-30 / 87.5-108 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM / WFM (Stereo with headphones)
Channels / memory management: 54 regular
Power supply:4.5 VDC (Three LR6 / AA batteries)
Current drain / power consumption:? mA
Antenna impedance / connector:50-300 ohm / ? or ferrite bar and telescopic whip
Dimensions (W*H*D):133*89*32 mm (5.25*3.5*1.25")
Weight:? Kg (? lb)
Other features:Dual time display. Sleep timer. Dual alarm. Scanning.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:199x-199x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
