Sangean ATS-505

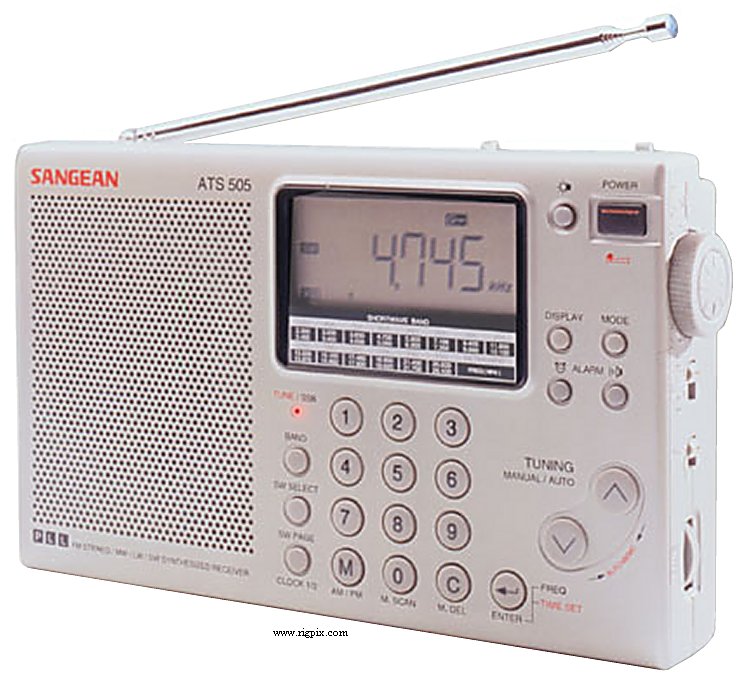

A picture of Sangean ATS-505

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range: 0.15-30 / 88-108 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM / SSB / CW / WFM (Stereo with headphones)
Channels / memory management: ? regular
Power supply:4.8-6 VDC (Four R6 / AA batteries)
or ? VDC external
Current drain / power consumption:? mA
Antenna impedance / connector:? ohm / ?
Dimensions (W*H*D):214*128*38 mm (8.42*5.04*1.5")
Weight:840 g (1.85 lb), without batteries
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:2000-200x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
