Noname/Unknown XK-200

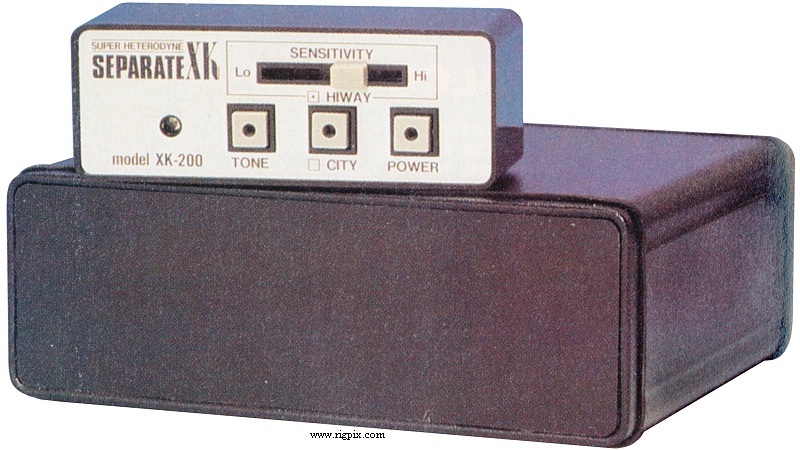

A picture of Noname/Unknown XK-200

SPECIFICATIONS

GENERAL
Type:Radar detector
Band(s):X-band: 10.525 GHz (50 MHz)
K-band: 24.150 GHz (100 MHz)
VG2 protection:No
Laser detection:No
Power supply:12 VDC
Current drain/power consumption:Max 250 mA
Dimensions (W*H*D):Receiver unit: 110*90*40 mm (4.33*3.54*1.58")
Control unit: 70*25*25 mm (2.76*0.98*0.98")
Weight:Receiver unit: ? gr (? oz)
Control unit: 50 gr (1.76 oz)
Other features:Remote mount




RECEIVER SECTION
Receiver system:Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? MHz
Sensitivity: X-band: -112 dB/cm2
K-band: -105 dB/cm2
(City/Hiway switch)




MISCELLANEOUS
Manufactured:1984-198x (Discontinued)
Additional info:New price 1985 in Sweden: 1695:- SEK
New price 1987 in Sweden: 1755:- SEK
Related documents:
Reviews:
Options/Accessories:
- -
