G.E.C BRT-400

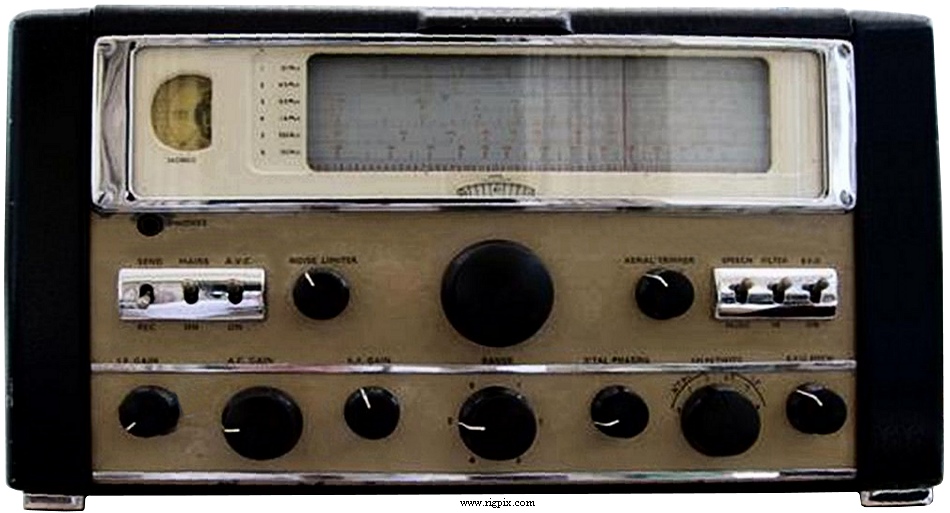

A picture of G.E.C BRT-400

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range: 0.15-0.35 / 0.55-33 MHz in 6 bands:
0.15-0.35 MHz
0.55-1.4 MHz
1.4-3.5 MHz
3.5-9.5 MHz
9.5-21.0 MHz
21.0-33.0 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM / CW
Channels / memory management: None
Power supply:Mains: 95-130 / 195-250 VAC
Current drain / power consumption:Max 100 W
Antenna impedance / connector:100 ohm / ?, balanced or unbalanced
Dimensions (W*H*D):483*266*380 mm (19.02*10.47*14.96")
Weight:35 Kg (77.16 lb)
Other features:




RECEIVER SECTION
Receiver system: Single conversion superheterodyne
IF: 455 KHz
Sensitivity: AM: 5.5, 7.0 and 9.0 KHz (-6 dB), switchable
CW: 0.5, 1.0 and 2.0 KHz (-6 dB), switchable
Selectivity: >30 dB @ 30 MHz
>100 dB below 1.4 MHz
Image rejection:
AF output power / speaker:3 W at ?% distortion / External only
External speaker connector:2.5 or 15 ohm




MISCELLANEOUS
Manufactured:England, 1947-1965 (Discontinued)
Additional info: Table version.
This radio was also modified for swedish use as MT-600 (Army),
m/50 (Navy) and MRM-8 (Air force)
Related documents:User manual (8.5 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
BRT-401 12 VDC power supply
