Wilson T-1402SM

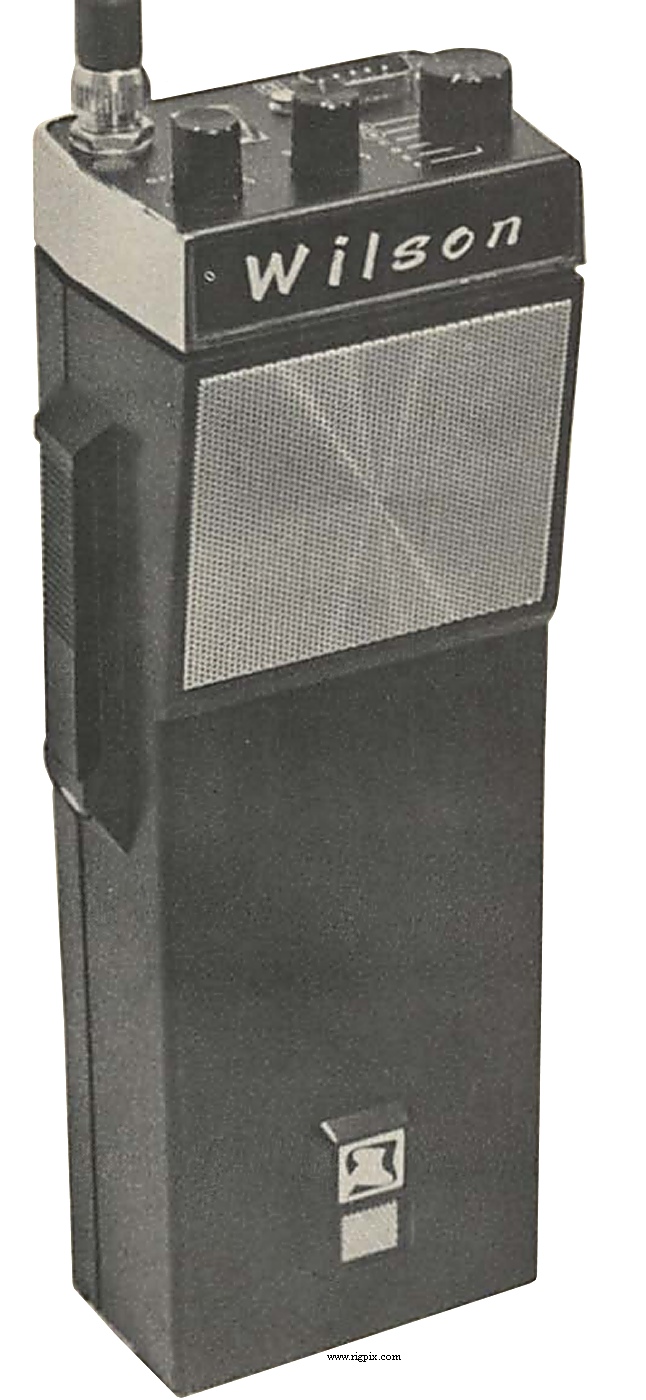

A picture of Wilson T-1402SM

SPECIFICATIONS

GENERAL
Type:Amateur VHF transceiver
Frequency range: TX: 144-148 MHz
RX: 144-148 MHz
Tuning steps:Channelized
Frequency stability:±? ppm
Mode:FM
Channels / memory management: 6 regular
Two XTALs per channel
Repeater shift / offset:According to XTALs
Power supply:12 VDC (Eight LR6 / AA alkaline or ten NiCd batteries)
Current drain / power consumption:RX: 14-25 mA
TX: Max 380 mA
Antenna impedance / connector:50 ohm / ?
Dimensions (W*H*D):73*225*48 mm (2.87*8.87*1.87")
Weight:567 g (1.25 lb)
Other features:S-meter/Battery indicator.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz - Ceramic filter: NTK LF-C12
Sensitivity:0.3 uV (20 dB quieting)
Selectivity:12 KHz (-6 dB)
Image rejection:
AF output power / speaker:? mW at ?% distortion / 8 ohm
External speaker connector:




TRANSMITTER SECTION
RF output power: 2 W
Modulation system:
Max FM deviation (Factory set):±5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan (By Tama Denki Co. Ltd.), 1974-197x (Discontinued)
Additional info: New price, may 1975 in the US: $199.95
New price 1977 in the US: $192.95
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
BCI
SMI
1410A
?
Battery charger
Speaker-microphone
Amplifier/mobile mount
DTMF keypad
