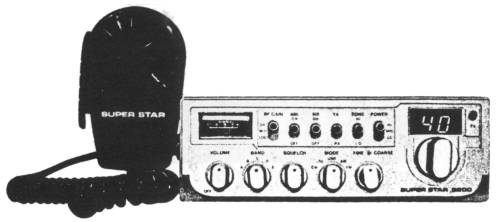

Super Star 2200
| Type: | Amateur HF transceiver |
| Frequency range: | 28-30 MHz (10 KHz steps) |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | AM: 10 W
SSB: 12 W |
| Sensitivity: | FM: <0.16 uV (12 dB SINAD) |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC |
| Current drain: | RX: Max ? mA
TX: Max ? A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | ? mm |
| Weight: | ? Kg |
| Manufactured: | 1985-198x |
| Other: | |
| Related documents: | |
|
