Minix MTO-20A

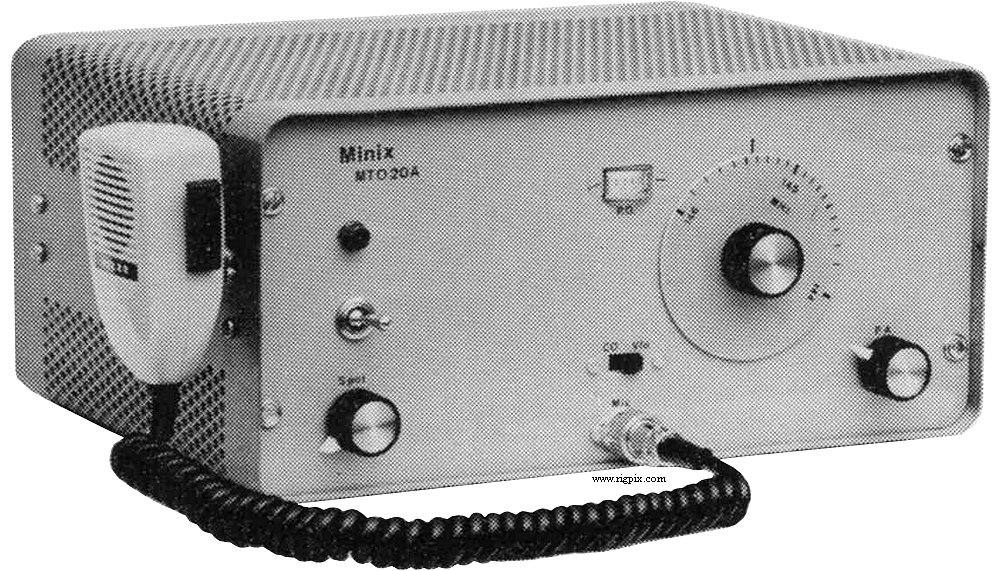

A picture of Minix MTO-20A

SPECIFICATIONS

GENERAL
Type:Amateur VHF transmitter
Frequency range:144-146 MHz
Tuning steps:Analog / continuous
Frequency stability:? ppm
Mode:AM
Channels / memory management:
Power supply:Mains
Current drain / power consumption:Max ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):320*150*220 mm (12.6*5.91*8.66")
Weight:6 Kg (13.23 lb)
Other features:




TRANSMITTER SECTION
RF output power: Max 10 W
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -60 dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:West Germany, 1968-19xx (Discontinued)
Additional info: Space is provided for an internal RX unit.
New price 1968 in West Germany: DM 525.-
Related documents: RF final: QQE03/12
Modifications and fixes:
Reviews:
Options / Accessories:
- -
