| GENERAL |

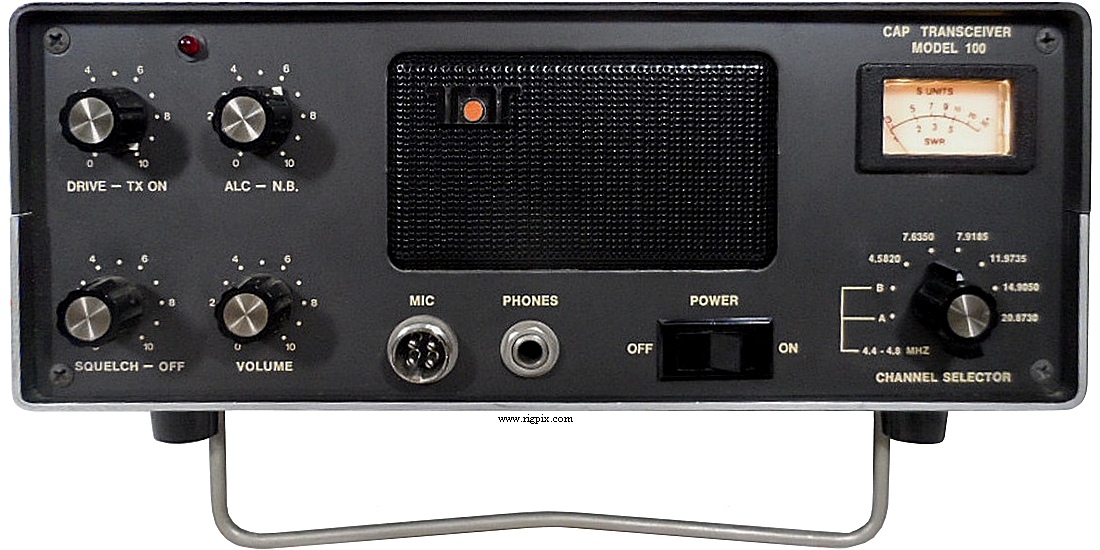

| Type: | Military HF transceiver |
| Frequency range: | 4-21 MHz |
| Tuning steps: | Channelized |
| Frequency stability: | ±50 Hz @ 0 to 40°C (32 to 104°F) |
| Mode: | SSB |
| Channels / memory management: |
8 regular
|
| Duplex shift / offset: | No |
| Power supply: | 12-14 VDC |
| Current drain / power consumption: | RX: ? mA
TX: Max 18 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 289*127*308 mm (11.38*5*12.12") |
| Weight: | 4.54 Kg (10 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 9.0033 MHz
|
| Sensitivity: | 0.3 uV (10 dB S+N/N) |
| Squelch sensitivity: | |
| Selectivity: | 2.4 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | 1 W at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 85-100 W (PEP) |
| Modulation system: | Balanced modulation |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -40 dB |
| Microphone impedance / connector: | Hi- or Low-Z / 4-pin (Male locking ring jack) |
| Microphone input level: | 5 mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | USA, 198x-198x (Discontinued) |
| Additional info: |
Made for the Civil Air Patrol (CAP).
|
| Related documents: |
User manual (3.5 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
