Ra 105 (Sweden)

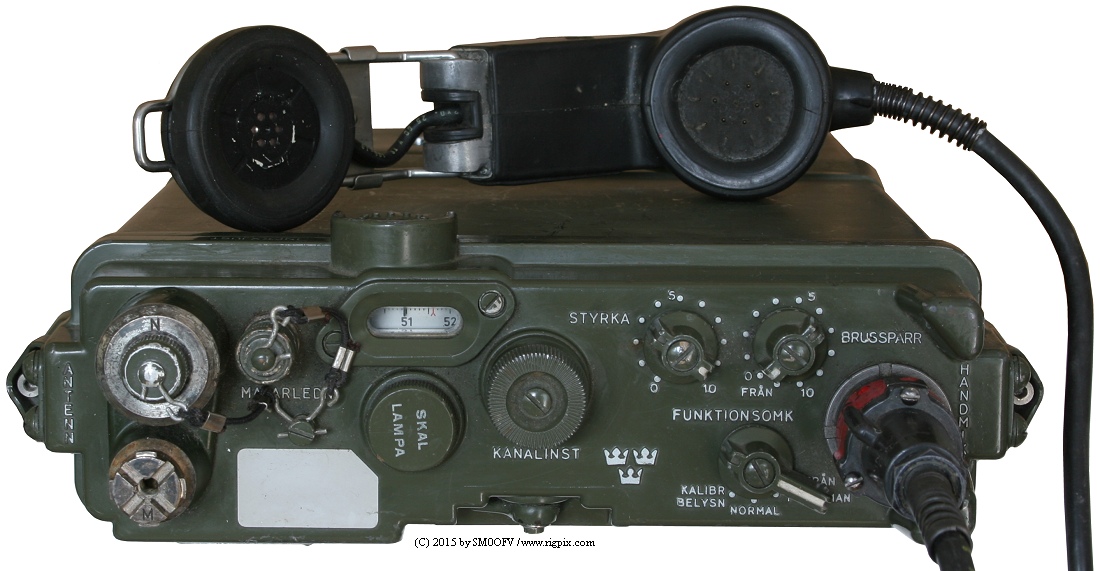

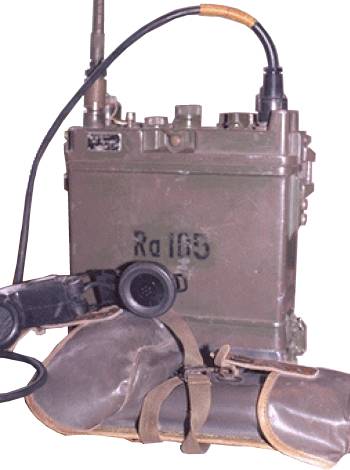

A picture of Ra 105 with handset (Sweden)

SPECIFICATIONS

GENERAL
Type:Military VHF transceiver
Frequency range:38-55 MHz
Tuning steps:Continuous
Mode:FM
Channels/memory management:-
Repeater shift/offset:-
Power supply:1.5, -6, 67.5 and 135 VDC from battery pack, or 12 or 24 VDC from
vehicle with optional voltage converter (Tc 94026)
Current drain/power consumption:RX: ? mA @ 12 VDC
TX: ? A @ 12 VDC
Antenna impedance/connector:50-75 ohms / BNC or collapsable whips
Dimensions (W*H*D):Transceiver: 265*455*85 mm (10.4*17.9*3.35")
Battery pack: 210*210*60 mm (8.27*8.27*2.4")
Weight:Transceiver: 4.6 Kg (10.14 lbs)
Battery pack: 3.2 Kg (7.05 lbs)
Other features:




RECEIVER SECTION
Receiver system:Single conversion superheterodyne
IF: 4.3 MHz
Sensitivity:0.7 uV (12 dB S/N)
Selectivity:75 KHz (-6 dB)
Image rejection:
AF output power/speaker:? W at ?% distortion / ? ohms
External speaker connector:




TRANSMITTER SECTION
RF output power: Max 900 mW
Modulation system:
Max FM deviation:±10 KHz
Spurious emissions:Less than -? dB
Microphone impedance/connector:? ohms / 10-pole (for M2795-222010 handset)




MISCELLANEOUS
Manufactured:Sweden (by SRA), 196x-196x (Discontinued)
Additional info:14 tubes
This is actually an american AN/PRC-10A manufactured
on license here in Sweden
Related documents:
Modifications:
Options/Accessories:
Tc 94026 Voltage converter, 12 or 24 VDC selectable

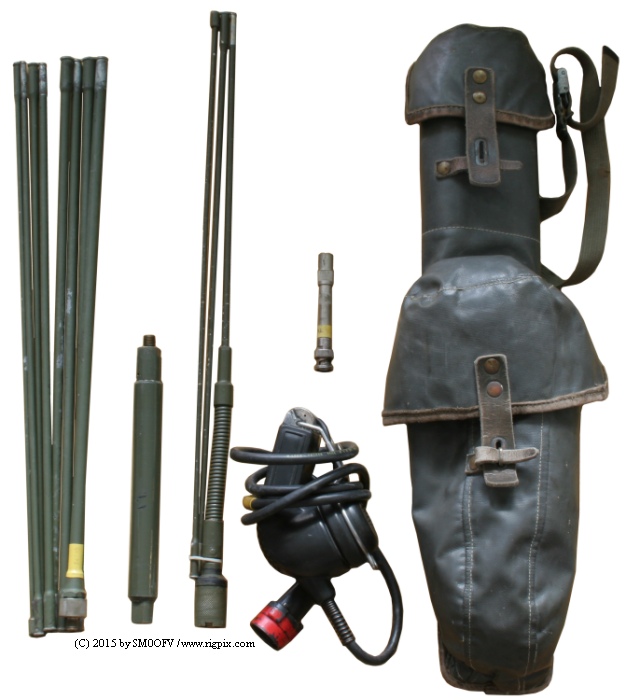

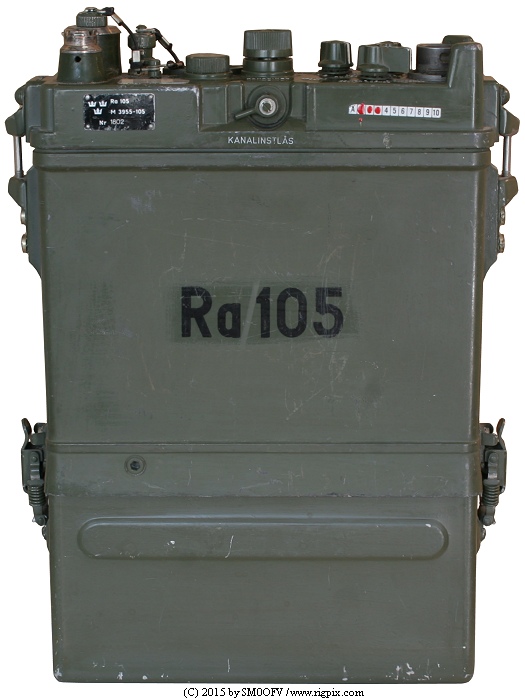

A picture of Ra 105 with voltage converter (Sweden) A picture of Ra 105 standard accessories (Sweden)
